Position: Home  > All Categories> Integrated Circuits (ICs) > INA114

INA114

Features: `LOW OFFSET VOLTAGE: 50mV max`LOW DRIFT: 0.25V/ max`LOW INPUT BIAS CURRENT: 2nA max`HIGH COMMON-MODE REJECTION: 115dB min`INPUT OVER-VOLTAGE PROTECTION: ±40V`WIDE SUPPLY RANGE: ±2.25 to ±18V`LOW QUIESCENT CURRENT: 3A max`8-PIN PLASTIC AND SOL-16Application·BRIDGE AMPLIFIER·THERMOCOUPLE A...

product image

INA114 Picture
See larger image
SeekIC No. : 004375352 Detail

INA114: Features: `LOW OFFSET VOLTAGE: 50mV max`LOW DRIFT: 0.25V/ max`LOW INPUT BIAS CURRENT: 2nA max`HIGH COMMON-MODE REJECTION: 115dB min`INPUT OVER-VOLTAGE PROTECTION: ±40V`WIDE SUPPLY RANGE: ±2.25 to ±1...

INA114 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA114
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`LOW OFFSET VOLTAGE: 50mV max
`LOW DRIFT: 0.25V/ max
`LOW INPUT BIAS CURRENT: 2nA max
`HIGH COMMON-MODE REJECTION: 115dB min
`INPUT OVER-VOLTAGE PROTECTION: ±40V
`WIDE SUPPLY RANGE: ±2.25 to ±18V
`LOW QUIESCENT CURRENT: 3A max
`8-PIN PLASTIC AND SOL-16


Application

·BRIDGE AMPLIFIER
·THERMOCOUPLE AMPLIFIER
·RTD SENSOR AMPLIFIER
·MEDICAL INSTRUMENTATION
·DATA ACQUISITION


Pinout

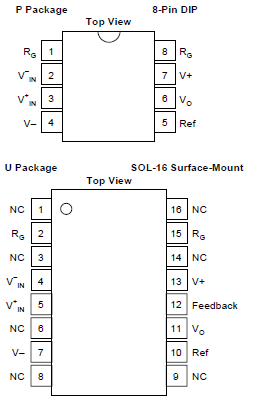

Connection Diagram


Specifications

Supply Voltage .................................................................................. ±18V
Input Voltage Range .......................................................................... ±40V
Output Short-Circuit (to ground) .............................................. Continuous
Operating Temperature ................................................. 40 to +125
Storage Temperature..................................................... 40 to +125
Junction Temperature .................................................................... +150
Lead Temperature (soldering, 10s) ............................................... +300

NOTE: (1) Stresses above these ratings may cause permanent damage.


Description

The INA114 is a low cost, general purpose instrumentation amplifier offering excellent accuracy. Its versatile 3-op amp design and small size make it ideal for a wide range of applications.

A single external resistor sets any gain from 1 to 10,000.

Internal input protection can withstand up to ±40V without damage.

The INA114 is laser trimmed for very low offset voltage (50V), drift (0.25V/) and high common-mode rejection (115dB at G = 1000). It operates with power supplies as low as ±2.25V, allowing use in battery operated and single 5V supply systems. Quiescent current is 3mA maximum.

The INA114 is available in 8-pin plastic and SOL-16 surface-mount packages. Both are specified for the 40 to +85 temperature range.




Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
You may also be interested in :
Cables, Wires
821-0814-a
415-0100-150
Optical Inspection Equipment
AA924
A21K4B
Cable Assemblies
CS1W-CN114
XW2Z-500T
Kits
IT243
UVSC-110-4E1
Computers, Office - Components, Accessories
DS-4008HCI
LB104V03(A1)
Filters
PICO2205A
PICO2204A
View more
