INA2132

Features: · DESIGNED FOR LOW COST· LOW QUIESCENT CURRENT: 160mA per Amplifier· WIDE POWER SUPPLY RANGE: Single Supply: 2.7V to 36V Dual Supplies: ±1.35V to ±18V· LOW GAIN ERROR: ±0.05% max· LOW NONLINEARITY: 0.001% max· HIGH CMRR: 90dB· HIGHLY VERSATILE CIRCUIT· EASY TO USE· SO-14 PACKAGEApplicat...

product image

INA2132 Picture
See larger image
SeekIC No. : 004375417 Detail

INA2132: Features: · DESIGNED FOR LOW COST· LOW QUIESCENT CURRENT: 160mA per Amplifier· WIDE POWER SUPPLY RANGE: Single Supply: 2.7V to 36V Dual Supplies: ±1.35V to ±18V· LOW GAIN ERROR: ±0.05% max· LOW NON...

INA2132 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
INA2132
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DESIGNED FOR LOW COST
· LOW QUIESCENT CURRENT: 160mA per Amplifier
· WIDE POWER SUPPLY RANGE:
    Single Supply: 2.7V to 36V
    Dual Supplies: ±1.35V to ±18V
· LOW GAIN ERROR: ±0.05% max
· LOW NONLINEARITY: 0.001% max
· HIGH CMRR: 90dB
· HIGHLY VERSATILE CIRCUIT
· EASY TO USE
· SO-14 PACKAGE


Application

·DIFFERENTIAL INPUT AMPLIFIER
·INSTRUMENTATION AMPLIFIER BUILDING BLOCK
·UNITY-GAIN INVERTING AMPLIFIER
·G = 1/2 AMPLIFIER
·G = 2 AMPLIFIER
·SUMMING AMPLIFIER
·DIFFERENTIAL CURRENT RECEIVER
·VOLTAGE-CONTROLLED CURRENT SOURCE
·BATTERY-POWERED SYSTEMS
·GROUND LOOP ELIMINATOR


Pinout

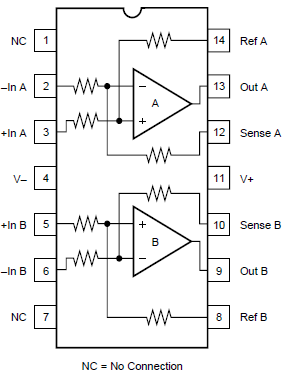

Connection Diagram


Specifications

Supply Voltage, V+ to V .................................................................... 36V
Input Voltage Range ......................................................................... ±80V
Output Short-Circuit (to ground) .............................................. Continuous
Operating Temperature ....................................................55 to +125
Storage Temperature .......................................................55 to +125
Junction Temperature ..................................................................... +150
Lead Temperature (soldering, 10s) ................................................ +300


Description

The INA2132 is a dual low power, unity-gain difference amplifier offering excellent value at very low cost. Each channel consists of a precision op amp with a laser-trimmed precision resistor network, providing accurate gain and high common-mode rejection. Excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over temperature. The internal op amp's common-mode range extends to the negative supply-ideal for single-supply applications.

The difference amplifier is the foundation of many commonly used circuits. The INA2132 provides this circuit function without using an expensive precision resistor network. The INA2132 is available in the SO-14 surface-mount package and is specified for operation over the extended industrial temperature range, 40 to +85.

A single version of this product with similar specifications is also available. See the INA132 data sheet for details.
