INF8594E General Description
The INF8594E-2 is a 4-Kbit (512 x 8-bit) floating gate electrically erasable programmable read only memory (EEPROM). By using an internal redundant storage code it is fault tolerant to single bit errors. This feature dramatically increases reliability. IC works in systems with serial I2C-bus which consists of 2 lines: for data -serial data input/output (SDA) and for clock - serial clock input (SCL). Up to four INF8594E-2 devices may be connected to the I2C-bus.The programming of the array is implemented by electron's tunneling. The programming voltage is generated on-chip, using a voltage multiplier. Power consumption is low owing to the full CMOS technology used. Device is functionally identical to the PCF8594E-2, Philips. IC are made in 8-pin DIP and 8-pin SOP.
INF8594E Features
`Low Power CMOS
maximum active current 2.5 mA
maximum standby current 10 µA
`Non-volatile storage of 4-Kbits organized as two pages each 256 x 8-bits
`Single supply (Ucc=4,5 B - 5,5 B)
`On-chip voltage multiplier
`Serial input/output I2C-bus
`Automatically added word address
`Internal timer for writing (no external components)
100 000 ERASE/WRITE cycles per byte;
`Write operations
-byte write mode
-8-byte page write mode (minimizes total write time per byte)
`Write protection input
`Read operations
sequential read
random read
`Power-on reset
`High reliability by using a redundant storage code (single bit error correction)
`Endurance
100 k; Tamb=850C
10 years non-volatile data retention time
`Pin and Address compatible to PCx8582x-2 Family and PCx8598x2 Family
`Temperature range: -40 ÷ +85
maximum active current 2.5 mA
maximum standby current 10 µA
`Non-volatile storage of 4-Kbits organized as two pages each 256 x 8-bits
`Single supply (Ucc=4,5 B - 5,5 B)
`On-chip voltage multiplier
`Serial input/output I2C-bus
`Automatically added word address
`Internal timer for writing (no external components)
100 000 ERASE/WRITE cycles per byte;
`Write operations
-byte write mode
-8-byte page write mode (minimizes total write time per byte)
`Write protection input
`Read operations
sequential read
random read
`Power-on reset
`High reliability by using a redundant storage code (single bit error correction)
`Endurance
100 k; Tamb=850C
10 years non-volatile data retention time
`Pin and Address compatible to PCx8582x-2 Family and PCx8598x2 Family
`Temperature range: -40 ÷ +85

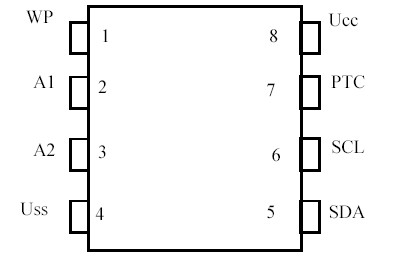

INF8594E Connection Diagram
INF8594E
PDF/DataSheet Download
- Datasheet: INF8594E
- File Size: 100548 KB
- Manufacturer: INTEGRAL [Integral Corp.]
- Click here to Download
