`Single-chip powerline networking controller with IEEE802.3u MII interface
`Implements Intellon's PowerPacket™ technology which is fully compliant with the HomePlug Powerline Alliance Industry
Specification v1.0
`General purpose 8-wire serial PHY data interface
`Selectable MDI/SPI PHY management interface
`Up to 14 Mbps data rate on the powerline
`Orthogonal Frequency Division Multiplexing (OFDM) with patented signal processing techniques for high data
reliability in noisy media conditions
`Intelligent channel adaptation maximizes throughput under harsh channel conditions
`Integrated quality-of-service (QoS) features such as prioritized random access, contention-free access, and segment
bursting
`56-bit DES Link Encryption with key management for secure powerline communications
`E2PROM interface for fast access to configuration parameters allows system designs to leverage standard Ethernet drivers
`IEEE 1149.1 JTAG Test Access Port
`3.3 V signaling, 5 V tolerant interface
`Support for three status LEDs

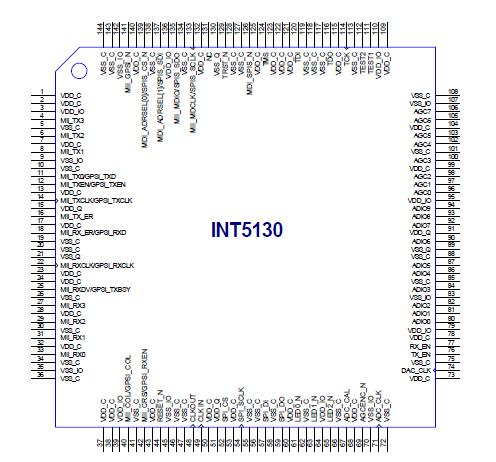

`144-pin LQFP package
The INT5130 IC is an integrated powerline MAC/PHY transceiver providing No New WiresTM communications to any room, over any wire, at speeds of up to 14 Mbps. The INT5130 provides the ability to select between a complete Media Independent Interface (MII) or a reduced General Purpose Serial Interface (GPSI) for interconnection to the external MAC controller. The INT5130 also provides the option of selecting between a Management Data Interface (MDI) or a simple Serial Peripheral Interface (SPI) for handling the management and control of the MII/GPSI interface.
