General Description
IP35063 General Description
The IP34063 series of control circuits contains all the bfunctions required to implement DCDC converters. Included are internal voltage reference, comparator, controlled duty cycle oscillator with current limit circuit, driver, and high current output switch. This series was specifically designed to be incorporated in Step-Down (Buck) and Step-Up (Boost) applications with a minimum number of external components.
IP35063 Maximum Ratings
Power Supply Voltage ..........................................................+40V
Comparator Input Voltage Range ..........................0.3V to +40V
Switch Collector Voltage ........................................................40V
Switch Emitter Voltage ...........................................................40V
Switch Collector to Emitter Voltage ........................................40V
Driver Collector Voltage .........................................................40V
Switch Current .....................................................................1.5A
Power Dissipation @ Tamb = 25°C Ceramic Packages ......1.25W
Plastic Packages ....................................................................1W
Derate above 25°C .....................................................10mW/°C
Operating Junction Temperature Ceramic Packages .........150°C
Plastic Packages ...............................................................125°C
Operating Ambient Temperature Range ...........See Table Above
Storage Temperature Range .................................65 to 150°C
Comparator Input Voltage Range ..........................0.3V to +40V
Switch Collector Voltage ........................................................40V
Switch Emitter Voltage ...........................................................40V
Switch Collector to Emitter Voltage ........................................40V
Driver Collector Voltage .........................................................40V
Switch Current .....................................................................1.5A
Power Dissipation @ Tamb = 25°C Ceramic Packages ......1.25W
Plastic Packages ....................................................................1W
Derate above 25°C .....................................................10mW/°C
Operating Junction Temperature Ceramic Packages .........150°C
Plastic Packages ...............................................................125°C
Operating Ambient Temperature Range ...........See Table Above
Storage Temperature Range .................................65 to 150°C
IP35063 Features
• Operation from 2.5 to 40V input
• Low Standby Current
• Current Limiting
• Output switch current of 1.5A
• Output voltage adjustable from 1.25 to 40V
• Operating frequency from 100Hz to 100kHz
• Direct replacement for MC34063/MC34063A series
• Low Standby Current
• Current Limiting
• Output switch current of 1.5A
• Output voltage adjustable from 1.25 to 40V
• Operating frequency from 100Hz to 100kHz
• Direct replacement for MC34063/MC34063A series

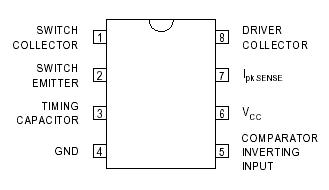

IP35063 Connection Diagram
IP35063
