Part Number: IP4001



MFG: INP

Package Cooled: SOP-14

D/C: 02+

Description: The IP4001 is a monolithic integrated circuit, andb suitable for 5-ch motor driver which drives focus ...


Urgent Purchase

IP4001 General Description


The IP4001 is a monolithic integrated circuit, andb suitable for 5-ch motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor and Tray motor of CDP & V-CD system.

IP4001 Maximum Ratings

Maximum supply voltage Vccmax ...................15 V
Power dissipation Pd ...............................2.3 * W
Operating temperature Topr ...........-35 ~ +85 OC
Storage temperature Tstg ..............-55 ~ 150 OC
Maximum output current Iomax ......................1 A

IP4001 Features

· 1ch(forward-reverse) control DC motor driver
· 4ch BTL(Balanced Transformerless) driver
· Built-in TSD (Thermal shutdown) circuit
· Built-in 5V regulator with an internal NPN TR
· Built-in mute circuit
· Built-in Tray motor speed control circuit
· Wide operating supply voltage range: 6.5V~13.2V

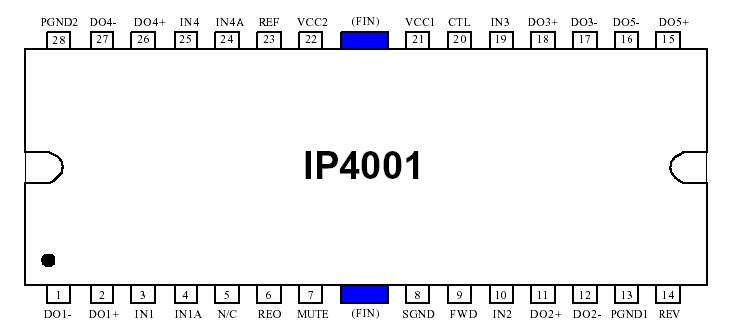

IP4001 Connection Diagram

IP4001 Connection Diagram

IP4001 datasheet

IP4001
PDF/DataSheet Download
