Part Number: IP4001S

MFG: IP

Package Cooled: SOP28

D/C: 00+

Description: The IP4001S is a monolithic integrated circuit, and suitable for 5-ch motor driver which drives focus ...

IP4001S General Description

The IP4001S is a monolithic integrated circuit, and suitable for 5-ch motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor and tray motor of CDP & V-CD system .Each channel excluding the tray channel driver is a fixed gain driver

IP4001S Maximum Ratings

Maximum supply voltage V_ccmax ......................18 V
Power dissipation P_d ..................................2.3 * W
Operating temperature T_opr .............-35 ~ +85 ^OC
Storage temperature T_stg .................-55 ~ 150 ^OC
Maximum output current I_omax .........................1 A

IP4001S Features

· Logic controlled 1-CH DC motor driver
· 4-CH BTL(Balanced Transformerless) drivers
· Built-in TSD (Thermal shutdown) circuit
· Built-in 5V regulator with an internal NPN TR
· Built-in mute circuit
· Built-in tray motor speed control circuit
· Wide operating supply voltage range: 6.5V~13.2V

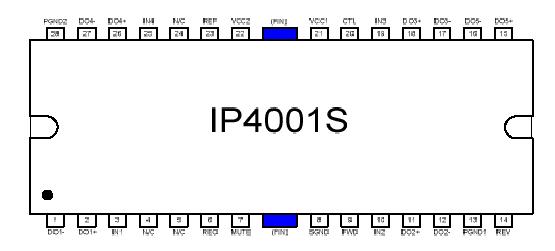

IP4001S Connection Diagram
