Part Number: IP9001
Package Cooled: QFP
D/C: 5
Description: The IP9001 is a monolithic integrated circuit, and suitable for a 4-CH motor driver which drives focus...
- Table of contents:
IP9001
-
Suppliers
DataSheet
General Description
IP9001 General Description
The IP9001 is a monolithic integrated circuit, and suitable for a 4-CH motor driver which drives focus actuator, tracking actuator, sled motor, spindle motor of portable CDP, VCDP systems. And it also provides DC/DC converter, reset, recharge, and short circuit protection.
IP9001 Maximum Ratings
|
CHARACTERISTICS |
SYMBOL |
VALUE |
UNIT |
|
Maximum supply voltage |
SVCC1max |
13.5 |
V |
|
SVCC2max |
13.5 |
V | |
|
HVCCmax |
13.5 |
V | |
|
CHGVCCmax |
13.5 |
V | |
|
Power dissipation |
Pd |
1 *(Note) |
W |
|
Operating temperature |
Topr |
-35 ~ +85 |
|
|
Storage temperature |
Tstg |
-55 ~ 150 |
|
|
Maximum output current |
Iomax |
0.5 |
A |
1. When mounted on 50mm X 50mm X 1mm PCB (Phenolic resin material).
2. Power dissipation reduces 8 mW/OC for using above Ta=25
3. Do not exceed Pd and SOA.
IP9001 Features
· 4ch BTL(Balanced Transformerless) driver.
· Built-in DC/DC converter control circuit.
· Built-in reset circuit.
· Built-in battery charging circuit.
· Built-in short circuit protection.
· Built-in normal OP AMP.
· Built-in thermal shut down circuit.
· Built-in DC/DC converter control circuit.
· Built-in reset circuit.
· Built-in battery charging circuit.
· Built-in short circuit protection.
· Built-in normal OP AMP.
· Built-in thermal shut down circuit.

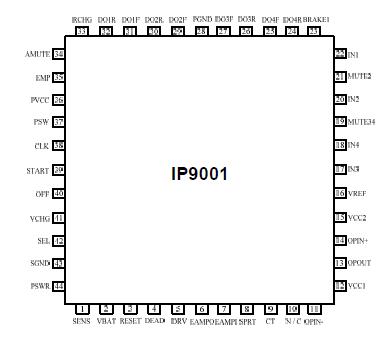

IP9001 Connection Diagram
IP9001
PDF/DataSheet Download
- Datasheet: IP9001
- File Size: 686959 KB
- Manufacturer: Interpion
- Click here to Download
