MFG:Infineon Technologies  Category:Discrete Semiconductor Products

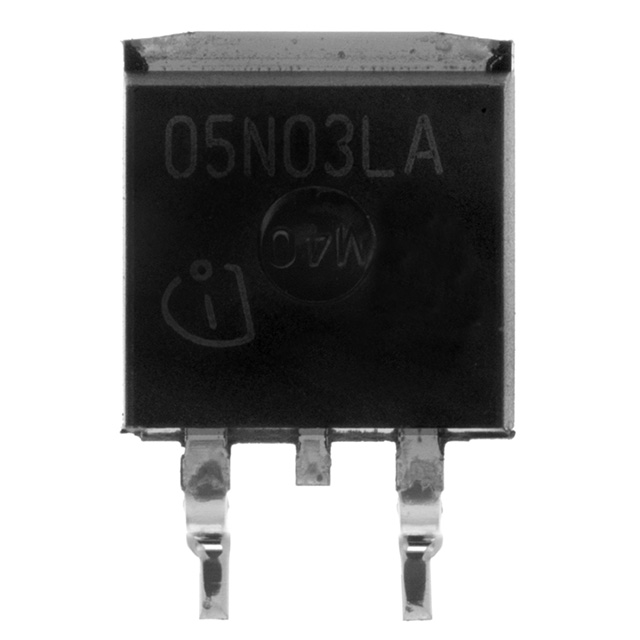

IPB05N03LAT

IPB Series Datasheet download

Five Points

Part Number: IPB05N03LAT

Category: Discrete Semiconductor Products

MFG: Infineon Technologies





Descriptions: MOSFET N-CH 25V 80A D2PAK

Price Break

1000
5000
10000

Unit Price

.70483
.65357
.64075

Extended Price

704.83
3267.85
6407.50

(All prices are in USD) Prices for reference only
Urgent Purchase

IPB05N03LAT General Description

MOSFET N-CH 25V 80A D2PAK

IPB05N03LAT Parameters

Technical/Catalog InformationIPB05N03LAT
VendorInfineon Technologies
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityN-Channel
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25° C80A
Rds On (Max) @ Id, Vgs4.6 mOhm @ 55A, 10V
Input Capacitance (Ciss) @ Vds 3110pF @ 15V
Power - Max94W
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs25nC @ 5V
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
FET FeatureLogic Level Gate
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IPB05N03LAT
IPB05N03LAT
IPB05N03LAXTINTR ND
IPB05N03LAXTINTRND
IPB05N03LAXTINTR
