MFG:International Rectifier Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: International Rectifier

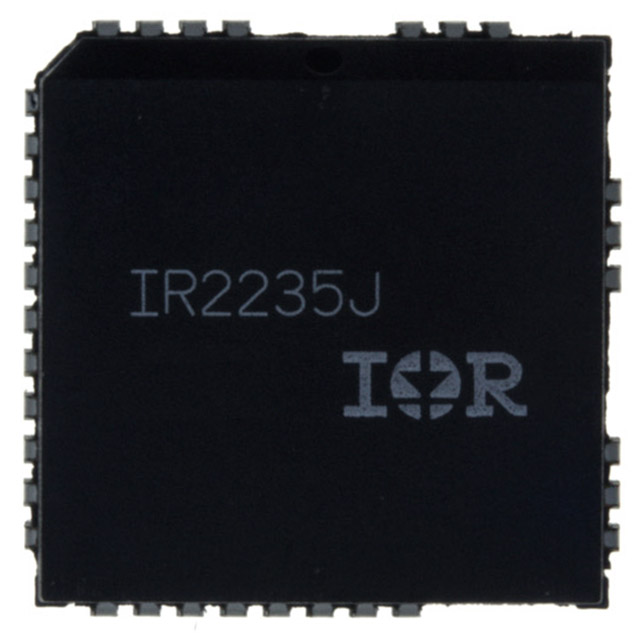

Descriptions: IC DRIVER BRIDGE 3PHASE 44PLCC
27
18.00000
486.00
| Technical/Catalog Information | IR2235JPBF |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Configuration | 3 Phase Bridge |
| Voltage - Supply | 10 V ~ 20 V |
| Current - Peak | 250mA |
| Delay Time | 750ns |
| Package / Case | 44-PLCC (32 Leads) |
| Packaging | Tube |
| Number of Outputs | 3 |
| Input Type | Inverting |
| Number of Configurations | 1 |
| Operating Temperature | -40°C ~ 125°C |
| High Side Voltage - Max (Bootstrap) | 1200V |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IR2235JPBF IR2235JPBF |
IR2010
PDF/DataSheet Download
The IR2235J are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inputs are ...
The IR2235(J&S) are high voltage, high speed power MOSFET and IGBT driver with three independent high side and low side referenced output channels for 3-phase applications. Proprietary HVIC technology enables ruggedized monolithic construction. Logic inp...
