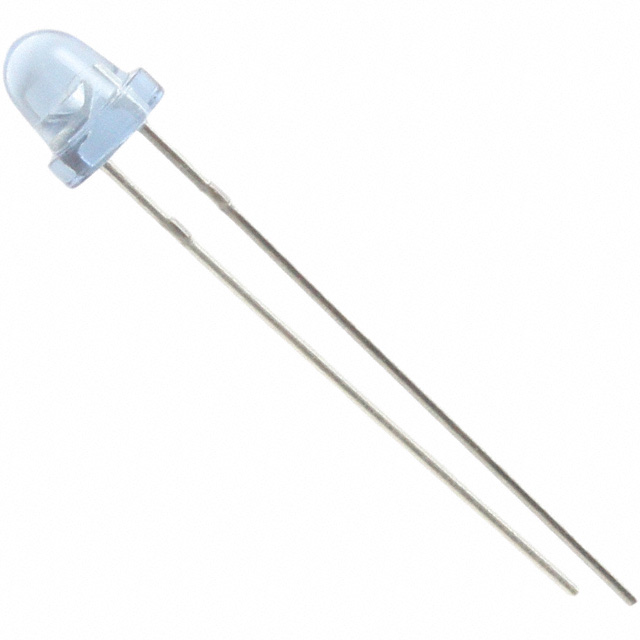

IR323: LED IR 5MM GAA1AS BLUE TH

IR323 Data Sheet

US $ .04~.27 / Piece | Get Latest Price

Part Number:: IR323
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250
250~500
500~1000
1000~2500
2500~5000

Unit Price
$.27
$.2
$.11
$.08
$.06
$.05
$.04
$.04

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IR3220 evaluate
Features: • Over temperature shutdown• Over current shutdown• Inrush current lim...
IR3220S evaluate
IC H-BRIDGE 45V 6A 20SOIC
IR3220STR evaluate
IC H-BRIDGE 45V 6A 20SOIC

Product Details

Quick Details

Series:	-	Manufacturer:	Everlight Electronics Co Ltd
Current - DC Forward (If):	100mA	Radiant Intensity (Ie) Min @ If:	6.4mW/sr @ 20mA
Wavelength:	940nm	Voltage - Forward (Vf) Typ:	1.2V
Supply Current (Max) :	11 mA	Viewing Angle:	30°
Orientation:	Top View	Mounting Type:	Through Hole
Package / Case:	Radial

Description

Series: -
Current - DC Forward (If): 100mA
Orientation: Top View
Wavelength: 940nm
Voltage - Forward (Vf) Typ: 1.2V
Mounting Type: Through Hole
Packaging: Bulk
Package / Case: Radial
Viewing Angle: 30°
Manufacturer: Everlight Electronics Co Ltd
Radiant Intensity (Ie) Min @ If: 6.4mW/sr @ 20mA

Features:

`High reliability
`High radiant intensity
`Peak wavelength p=940nm
`2.54mm Lead spacing
`Low forward voltage
`Pb free
`The product itself will remain within RoHS compliant version.

Application

·Free air transmission system
·Infrared remote control units with high power requirement
·Smoke detector
·Infrared applied system

Specifications

Parameter	Symbol	Rating	Unit
Continuous Forward Current	I_F	100	V
Peak Forward Current	I_FP	1.0	mA
Reverse Voltage	V_R	5
Operating Temperature	T_opr	-40 ~ +85
Storage Temperature	T_stg	-40 ~ +90
Soldering Temperature	T_sol	260	V
Power Dissipation at(or below) 25Free Air Temperature	P_d	150	mW

Notes:
*1:IFP Conditions--Pulse Width100s and Duty1%.
*2:Soldering time5 seconds.

Description

EVERLIGHT'S Infrared Emitting Diode(IR323) is a high intensity diode , molded in a blue transparent plastic package.

The device is spectrally matched with phototransistor , photodiode and infrared receiver module.
