IR3Y30M1

Features: • Low power consumption : 265 mW (TYP.)• Wide AGC range : 3 to +29 dB• High speed sample-and-hold circuits : pulse width 15 ns (MIN.)• Signal processing from CCD output to 75 $ video output is possible• Built-in low-pass filter• Built-in comparator for...

product image

IR3Y30M1 Picture
See larger image
SeekIC No. : 004376267 Detail

IR3Y30M1: Features: • Low power consumption : 265 mW (TYP.)• Wide AGC range : 3 to +29 dB• High speed sample-and-hold circuits : pulse width 15 ns (MIN.)• Signal processing from CCD ou...

IR3Y30M1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IR3Y30M1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption : 265 mW (TYP.)
• Wide AGC range : 3 to +29 dB
• High speed sample-and-hold circuits : pulse width 15 ns (MIN.)
• Signal processing from CCD output to 75 $ video output is possible
• Built-in low-pass filter
• Built-in comparator for electronic exposure control
• Built-in aperture circuit and delay line
• Single +5 V power supply
• Packages
     IR3Y30M : 48-pin QFP (QFP048-P-1010)
     IR3Y30M1 : 48-pin QFP (QFP048-P-0707)
                            0.5 mm pin-pitch


Pinout

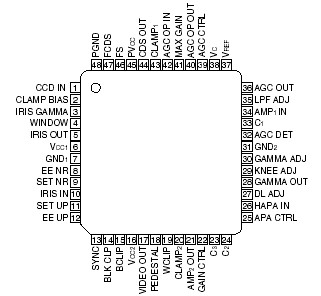

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS RATING UNIT
IR3Y30M IR3Y30M1
Supply voltage VCC1, VCC2   7 V
PVCC   7 V
Input voltage VIA Except for pins 46 (FS) and 47 (FCDS) VCC V
VIP Pins 46 (FS) and 47 (FCDS) 0.2 to PVCC + 0.2 V
Comparator output voltage VSD   VCC V
Power consumption PD TA +25 725 560 mW
PD derating ratio   TA > +25 5.8 4.5 mW/
Operating temperature TOPR
   30 to +75 30 to +70
Storage temperature TSTG   55 to +150



Description

The IR3Y30M1 are bipolar single-chip signal processing ICs with built-in low-pass filter and delay line for B/W video cameras. They realize both downsizing and cost reduction of the finished set.
