Part Number: IRF7704



MFG: IOR

Package Cooled: TSSOP-8

D/C: 06+

Description: HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low ...


Urgent Purchase

IRF7704 General Description


HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the ruggedized device design, that International Rectifier is well known for, provides thedesigner with an extremely efficient and reliable device for battery and load management.

The TSSOP-8 package has 45% less footprint area than the standard SO-8. This makes the TSSOP-8 an ideal device for applications where printed circuit board space is at a premium. The low profile (<1.2mm) allows it to fit easily into extremely thin environments such as portable electronics and PCMCIA cards.

IRF7704 Maximum Ratings

  Parameter Max. Units
VDS Drain- Source Voltage -40 V
ID @ TA = 25 Continuous Drain Current, VGS @ -10V -4.6 A
ID @ TA = 70 Continuous Drain Current, VGS @ -10V -3.7
IDM Pulsed Drain Current -19
PD @TA = 25 Maximum Power Dissipation 1.5 W
PD @TA = 70 Maximum Power Dissipation 1.0
  Linear Derating Factor 12 W/
VGS Gate-to-Source Voltage ± 20 V
TJ, TSTG Junction and Storage Temperature Range -55 to + 150

IRF7704 Features

·Ultra Low On-Resistance
·P-Channel MOSFET
·Very Small SOIC Package
·Low Profile (< 1.1mm)
·Available in Tape & Reel

IRF7704 Connection Diagram

IRF7704 Connection Diagram

IRF7704 datasheet

IRF7704
PDF/DataSheet Download

Find IRF7704 Suppliers

  • ·IRF034
  • IRF [International Rectifier]
  • REPETITIVE AVALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE)
  • 147521 KB
  • IRF034 Datasheet Download
  • ·IRF044
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 22513 KB
  • IRF044 Datasheet Download
  • ·IRF044SMD
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 21905 KB
  • IRF044SMD Datasheet Download
  • ·IRF054
  • IRF [International Rectifier]
  • REPETITIVE AVALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE)
  • 149688 KB
  • IRF054 Datasheet Download
  • ·IRF054SMD
  • SEME-LAB [Seme LAB]
  • N-CHANNEL POWER MOSFET
  • 23141 KB
  • IRF054SMD Datasheet Download
  • ·IRF100
  • ETC [ETC]
  • 50W to 500W HIGH POWER WIRE WOUND RESISTORS FLAT SHAPED ALUMINUM HOUSED
  • 86902 KB
  • IRF100 Datasheet Download
  • ·IRF101
  • FAIRCHILD [Fairchild Semiconductor]
  • N-Channel Power MOSFETs, 27 A, 60-100V
  • 149859 KB
  • IRF101 Datasheet Download
  • ·IRF1010E
  • IRF [International Rectifier]
  • Power MOSFET(Vdss=60V,Rds(on)=12mohm,Id=84A
  • 200209 KB
  • IRF1010E Datasheet Download

Related Part Number

IRF7704 Relative Products

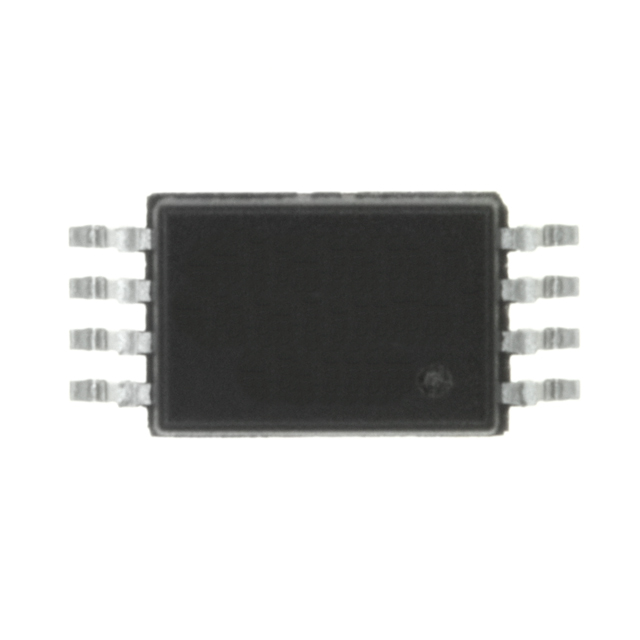

  • IRF7703TRPBF
