IRG4BC30K: IGBT UFAST 600V 28A TO-220AB

IRG4BC30K Data Sheet

Get Latest Price

Part Number:: IRG4BC30K
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

IRG4BAC50S evaluate
Features: • Standard: Optimized for minimum saturation voltage and low operating frequencies...
IRG4BAC50U evaluate
Features: • UltraFast: Optimized for high operating frequencies 8-40kHz in hard switching, &...
IRG4BAC50W evaluate
Features: • Designed expressly for switch-mode power supply and PFC (power factor correction...

Product Details

Quick Details

Series:	-	Manufacturer:	International Rectifier
IGBT Type:	-	Frequency :	0.5 GHz to 2 GHz
Voltage - Collector Emitter Breakdown (Max):	600V	Vce(on) (Max) @ Vge, Ic:	2.7V @ 15V, 16A
Current - Collector (Ic) (Max):	28A	Power - Max:	100W
Input Type:	Standard	Mounting Type:	Through Hole
Package / Case:	TO-220-3	Supplier Device Package:	TO-220AB

Description

Series: -
Manufacturer: International Rectifier
IGBT Type: -
Voltage - Collector Emitter Breakdown (Max): 600V
Input Type: Standard
Power - Max: 100W
Mounting Type: Through Hole
Packaging: Tube
Vce(on) (Max) @ Vge, Ic: 2.7V @ 15V, 16A
Current - Collector (Ic) (Max): 28A
Package / Case: TO-220-3
Supplier Device Package: TO-220AB

Features:

* High short circuit rating optimized for motor control,
t_sc=10s, @360V V_CE (start), T_J = 125°C,
V_GE = 15V
* Combines low conduction losses with high
switching speed
* Latest generation design provides tighter parameter
distribution and higher efficiency than previous
generations

Specifications

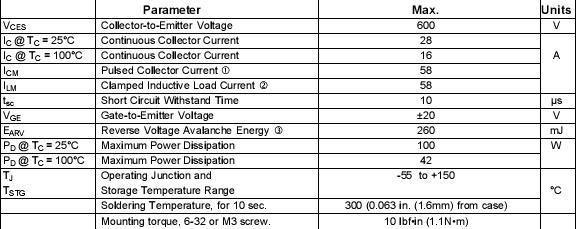

Connection Diagram

Parameters:

Technical/Catalog Information	IRG4BC30K
Vendor	International Rectifier
Category	Discrete Semiconductor Products
Input Type	Standard
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	28A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 16A
Power - Max	100W
Mounting Type	Through Hole
Package / Case	TO-220-3 (Straight Leads)
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IRG4BC30K IRG4BC30K
