IRG4BC30KD-S

IGBT W/DIODE 600V 28A D2PAK

product image

IRG4BC30KD-S Picture
SeekIC No. : 004377659 Detail

IRG4BC30KD-S: IGBT W/DIODE 600V 28A D2PAK

floor Price/Ceiling Price

US $ 1.07~1.07 / Piece | Get Latest Price
Part Number:
IRG4BC30KD-S
Mfg:
International Rectifier
Supply Ability:
5000

Price Break

  • Qty
  • 1~250
  • Unit Price
  • $1.07
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

FeaturesFeaturesFeaturesFeaturesFeatures
* High short circuit rating optimized for motor control,
   t sc  =10s,  @360V  V CE  (start), T  J  = 125°C,
VGE = 15V
* Combines low conduction losses with high
   switching speed
* tighter parameter distribution and higher efficiency
   than previous generations
* IGBT co-packaged with HEXFREDTM  ultrafast,
   ultrasoft recovery antiparallel diodes



Specifications

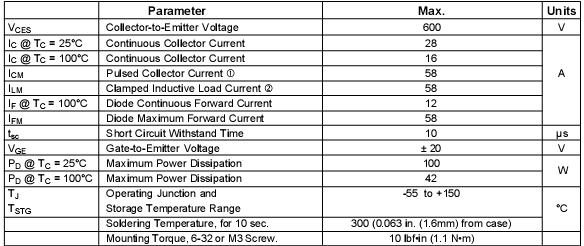

  Connection Diagram


Description




Parameters:

Technical/Catalog InformationIRG4BC30KD-S
VendorInternational Rectifier
CategoryDiscrete Semiconductor Products
Input TypeStandard
Voltage - Collector Emitter Breakdown (Max)600V
Current - Collector (Ic) (Max)28A
Vce(on) (Max) @ Vge, Ic2.7V @ 15V, 16A
Power - Max100W
Mounting TypeSurface Mount
Package / CaseD²Pak, TO-263 (2 leads + tab)
PackagingTube
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names IRG4BC30KD S
IRG4BC30KDS
