Part Number: IRGIB10B60KD1P



MFG: IR

Package Cooled: N/A

D/C: 08+



Urgent Purchase

IRGIB10B60KD1P Maximum Ratings

Parameter Symbol Rating Unit
Collector-to-Emitter Voltage VCES 600 V
Continuous Collector Current IC @ TC = 25 16 A
Continuous Collector Current IC @ TC = 100 10 A
Pulse Collector Current (Ref.Fig.C.T.5) ICM 32 A
Clamped Inductive Load current ILM 32
Diode Continuous Forward Current IF @ TC = 25 16 A
Diode Continuous Forward Current IF @ TC = 100 10 A
Diode Maximum Forward Current IFM 32 A
RMS Isolation Voltage, Terminal to Case, t = 1 min VISOL 2500 V
Gate-to-Emitter Voltage VGE ±20 V
Maximum Power Dissipation PD @ TC = 25 44 W
Maximum Power Dissipation PD @ TC = 100 22 W
Operating Junction and Storage Temperature Range TJ,TSTG -55 to + 175
Soldering Temperature for 10 sec. 300 (0.063 in. (1.6mm) from case)
Mounting Torque, 6-32 or M3 Screw 10 lbf.in (1.1N.m)

IRGIB10B60KD1P Features

· Low VCE (on) Non Punch Through IGBT Technology.
· Low Diode VF.
· 10µs Short Circuit Capability.
· Square RBSOA.
· Ultrasoft Diode Reverse Recovery Characteristics.
· Positive VCE (on) Temperature Coefficient.
· Maximum Junction Temperature Rated at 175°C
· Lead-Free

IRGIB10B60KD1P datasheet

IRG4BAC50S
PDF/DataSheet Download

Find IRGIB10B60KD1P Suppliers

  • ·IRG4BAC50U
  •
  • INSULATED GATE BIPOLAR TRANSISTOR
  • 186056 KB
  • IRG4BAC50U Datasheet Download
  • ·IRG4BAC50W
  •
  • INSULATED GATE BIPOLAR TRANSISTOR
  • 167129 KB
  • IRG4BAC50W Datasheet Download
  • ·IRG4BC10K
  • IRF [International Rectifier]
  • Short Circuit Rated UltraFast IGBT
  • 162414 KB
  • IRG4BC10K Datasheet Download
  • ·IRG4BC10KD
  • IRF [International Rectifier]
  • INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE(Vces=600V, Vce(on)typ.2.39V, @Vge=15V, Ic=5.0A)
  • 215624 KB
  • IRG4BC10KD Datasheet Download
  • ·IRG4BC10S
  • IRF [International Rectifier]
  • INSULATED GATE BIPOLAR TRANSISTOR Standard Speed IGBT(Vces=600V, Vce(on)typ.1.10V, @Vge=15V, Ic=2.0A)
  • 160816 KB
  • IRG4BC10S Datasheet Download
  • ·IRG4BC10SD
  •
  • INSULATED GATE BIPOLAR TRANSISTOR
  • 215797 KB
  • IRG4BC10SD Datasheet Download
  • ·IRG4BC10SD-L
  • IRF [International Rectifier]
  • INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE(Vces=600V, Vce(on)typ.=1.10V, @Vge=15V, Ic=2.0A)
  • 222517 KB
  • IRG4BC10SD-L Datasheet Download
  • ·IRG4BC10SD-S
  • IRF [International Rectifier]
  • INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE(Vces=600V, Vce(on)typ.=1.10V, @Vge=15V, Ic=2.0A)
  • 222517 KB
  • IRG4BC10SD-S Datasheet Download

Related Part Number

IRGIB10B60KD1P Relative Products

  • IRGIB10B60KD1

    IRGIB10B60KD1

  • IRGI4090PBF

    IRGI4090PBF

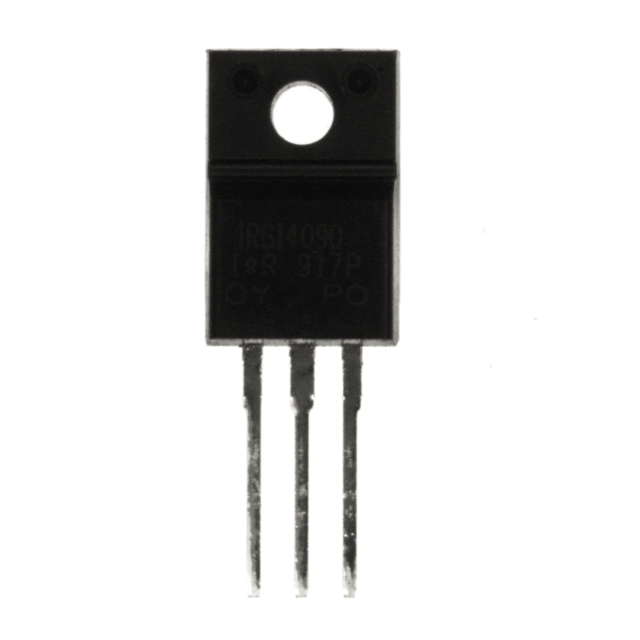

    IGBT 300V 21A W/DIO TO-220AB FP
