MFG:IR/FAIRCHILD Package Cooled:TO-251 D/C:05+
MFG: IR/FAIRCHILD
Package Cooled: TO-251
D/C: 05+
Description: Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achiev...
Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient device for use in a wide variety of applications.
The D-PAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques.
The straight lead version (IRFU series) is for throughhole mounting applications. Power dissipation levels up to 1.5 watts are possible in typical surface mount applications.
| Parameter | Max. | Units | |
| ID @ TC = 25°C | Continuous Drain Current, VGS @ 10V | 17 | A |
| ID @ TC = 100°C | Continuous Drain Current, VGS @ 10V | 12 | |
| IDM | Pulsed Drain Current | 60 | |
| PD @TC = 25°C | C Power Dissipation | 79 | W |
| Linear Derating Factor | 0.53 | W/°C | |
| VGS | Gate-to-Source Voltage | ±16 | V |
| EAS | Single Pulse Avalanche Energy | 150 | mJ |
| IAR | Avalanche Current | 9.0 | A |
| EAR | Repetitive Avalanche Energy | 7.9 | mJ |
| dv/dt | Peak Diode Recovery dv/dt | 5.0 | V/ns |
| TJ TSTG |
Operating Junction and Storage Temperature Range |
-55 to + 175 | °C |
| Soldering Temperature, for 10 seconds | 300 (1.6mm from case ) |
IRLU3410
PDF/DataSheet Download

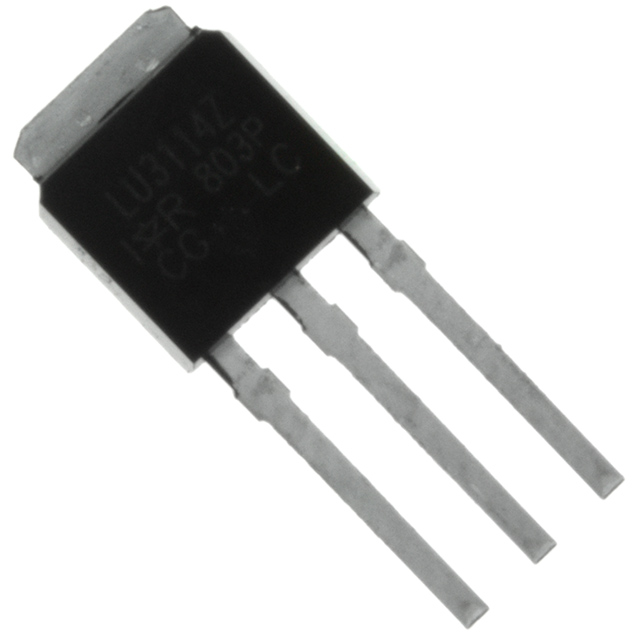

Specifically designed for Automotive applications, this HEXFET® Power MOSFET IRLU3114ZPbF utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of IRLU3114ZPbF are a 175 junction operating ...
