Position: Home > Datasheet list > IRS Series > Index I > IRS2530DSPBF
Electronica China

Purchase IRS2530DSPBF, In-stock IRS2530DSPBF From SeekIC.

MFG:International Rectifier  Category:Integrated Circuits (ICs)

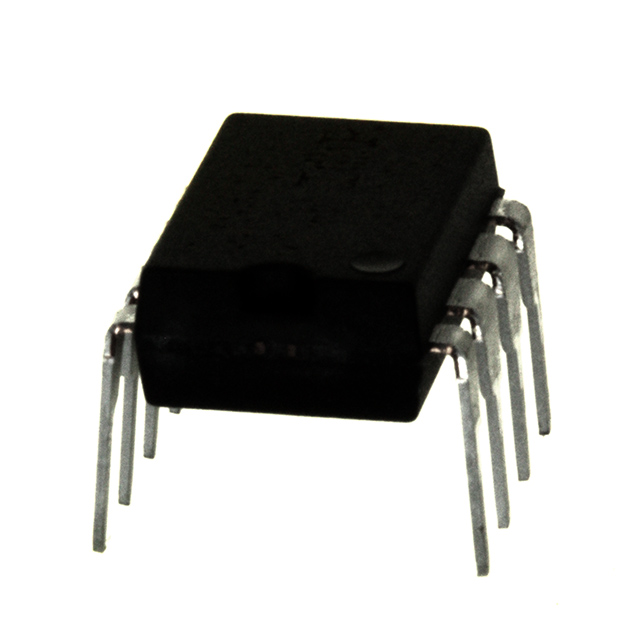

IRS2530DSPBF Product Image

IRS Series Datasheet download

Five Points

Part Number: IRS2530DSPBF

Category: Integrated Circuits (ICs)

MFG: International Rectifier





Descriptions: IC BALLAST CTRL DIM 600V 8-SOIC

Price Break

380

Unit Price

1.17000

Extended Price

444.60

(All prices are in USD) Prices for reference only
Urgent Purchase

IRS2530DSPBF General Description

IC BALLAST CTRL DIM 600V 8-SOIC

IRS2530DSPBF Parameters

Technical/Catalog InformationIRS2530DSPBF
VendorInternational Rectifier
CategoryIntegrated Circuits (ICs)
Package / Case8-SOIC (3.9mm Width)
PackagingTube
Voltage - Supply12.5 V ~ 15.6 V
TypeBallast Controller
Current - Supply5mA
Current - Output260mA
Frequency34.2 ~ 115 kHz
Operating Temperature-40°C ~ 125°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names IRS2530DSPBF
