IS43R16800A

Features: • Clock Frequency: 200, 125 MHz• Power supply (VDD and VDDQ): 2.6V• SSTL 2 interface• Four internal banks to hide row Pre-charge and Active operations• Commands and addresses register on positive clock edges (CLK)• Bi-directional Data Strobe signal for...

product image

IS43R16800A Picture
See larger image
SeekIC No. : 004379065 Detail

IS43R16800A: Features: • Clock Frequency: 200, 125 MHz• Power supply (VDD and VDDQ): 2.6V• SSTL 2 interface• Four internal banks to hide row Pre-charge and Active operations• Comman...

IS43R16800A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IS43R16800A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Clock Frequency: 200, 125 MHz
• Power supply (VDD and VDDQ): 2.6V
• SSTL 2 interface
• Four internal banks to hide row Pre-charge and Active operations
• Commands and addresses register on positive clock edges (CLK)
• Bi-directional Data Strobe signal for data capture
• Differential clock inputs (CLK and CLK) for two data accesses per clock cycle
• Data Mask feature for Writes supported
• DLL aligns data I/O and Data Strobe transitions with clock inputs
• Half-strength and Matched drive strength options
• Programmable burst length for Read and Write operations
• Programmable CAS Latency (3 clocks)
• Programmable burst sequence: sequential or interleaved
• Burst concatenation and truncation supported
for maximum data throughput
• Auto Pre-charge option for each Read or Write burst
• 4096 refresh cycles every 64ms
• Auto Refresh and Self Refresh Modes
• Pre-charge Power Down and Active Power Down Modes
• Industrial Temperature Availability
• Lead-free Availability


Pinout

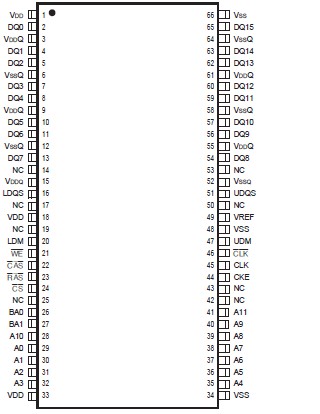

Connection Diagram


Specifications

Symbol
Parameters
Rating
Uni
VDD MAX
Maximum Supply Voltage
1.0 to +3.6
V
VDDQMAX
Maximum Supply Voltage for Output Buffer
1.0 to +3.6
V
VIN, VREF
Input Voltage, Reference Voltage
1.0 to +3.6
V
PD MAX
Allowable Power Dissipation
1
W
ICS
Output Shorted Current
50
mA
TOPR
Operating Temperature
Com.
0 to +70
°C
TSTG
Storage Temperature
55 to +125
°C
