Product Details

Description



Features:

• High-speed access times: 8, 10, 12 and 15 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CE and OE options
• CE power-down
• Low power: 540 mW @ 10 ns 36 mW standby mode
• TTL compatible inputs and outputs
• Single 3.3V ±10% power supply
• Packages available:
36-pin 400-mil SOJ
44-pin TSOP (Type II)


Pinout

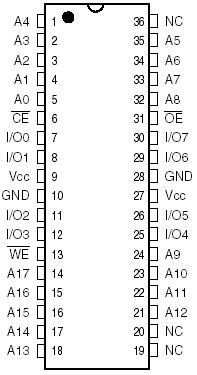

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply voltage with Respect to GND 0.5 to +4.6 V
VTERM Terminal Voltage with Respect to GND 0.5 to Vcc + 0.5 V
TBIAS Temperature Under Bias Com.
Ind.		 10 to +85
45 to +90		 °C
TSTG Storage Temperature 65 to +150 °C
PD Power Dissipation 1.0 W



Description

The ISSI IS61LV2568 is a very high-speed, low power, 262,144-word by 8-bit CMOS static RAM. The IS61LV2568
is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative
circuit design techniques, yields higher performance and low power consumption devices.

When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 36mW (max.) with CMOS input levels.

The IS61LV2568 operates from a single 3.3V power supply and all inputs are TTL-compatible.

The IS61LV2568 is available in 36-pin 400-mil SOJ, and 44-pin TSOP (Type II) packages.
