Part Number: IS62C1024L



MFG: ISSI

Package Cooled: ORG PACKING

D/C: 08+

Description: The ISSI IS62C1024L is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI's high-perform...


Urgent Purchase

IS62C1024L General Description


The ISSI IS62C1024L is a low power,131,072-word by 8-bit CMOS static RAM. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consumption devices.

When CE1 is HIGH or CE2 is LOW (deselected), the device assumes a standby mode at which the power dissipation can be reduced by using CMOS input levels.

Easy memory expansion is provided by using two Chip Enable inputs, CE1 and CE2. The active LOW Write Enable (WE) controls both writing and reading of the memory.

The IS62C1024L is available in 32-pin plastic SOP and TSOP (type 1) packages.



IS62C1024L Maximum Ratings

Symbol Symbol Value Unit
VTERM Terminal Voltage with Respect to GND -0.5 to +7.0 V
TSTG Storage Temperature -65 to +150
PT Power Dissipation 1.5 W
IOUT DC Output Current (LOW) 20 mA

IS62C1024L Features

High-speed access time: 35, 70 ns
Low active power: 450 mW (typical)
Low standby power: 150 |ìW (typical) CMO standby
Output Enable (OE) and two Chip Enable (CE1  and CE2) inputs for ease in applications
Fully static operation: no clock or refresh required
TTL compatible inputs and outputs
Single 5V (±10%) power suppl

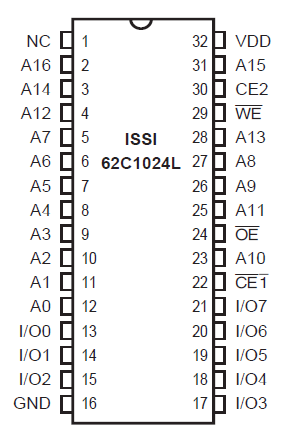

IS62C1024L Connection Diagram

IS62C1024L  Connection Diagram
