General Description
IS80LV51 General Description
The ISSI IS80LV51 and IS80LV31 are high-performance microcontrollers fabricated using high-density CMOS technology. The CMOS IS80LV51/31 is functionally compatible with the industry standard 80C51 microcontrollers.
The IS80LV51/31 is designed with 4K x 8 ROM (IS80LV51 only); 128 x 8 RAM; 32 programmable I/O lines; a serial I/O port for either multiprocessor communications, I/O expansion or full duplex UART; two 16-bit timer/counters; a six-source, two-priority-level, nested interrupt structure; and an on-chip oscillator and clock circuit. The IS80LV51/31 can be expanded using standard TTL compatible memory.
IS80LV51 Maximum Ratings
| Symbol | Parameter |
Value |
Unit |
| VTERM | Terminal Voltage with Respect to GND(2) |
2.0 to+7.0 |
V |
| TBIAS | Temperature Under Bias(3) |
0 to +70 |
|
| TSTG | Storage Temperature |
65 to +125 |
|
| PT | Power Dissipation |
1.5 |
W |
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. Minimum DC input voltage is 0.5V. During transitions, inputs may undershoot to 2.0V for periods less than 20 ns. Maximum DC voltage on output pins is Vcc + 0.5V which may overshoot to Vcc + 2.0V for periods less than 20 ns.
3. Operating temperature is for commercial products only defined by this specification.
IS80LV51 Features
• 80C51 based architecture
• 4K x 8 ROM (IS80LV51 only)
• 128 x 8 RAM
• Two 16-bit Timer/Counters
• Full duplex serial channel
• Boolean processor
• Four 8-bit I/O ports, 32 I/O lines
• Memory addressing capability
64K ROM and 64K RAM
• Programmable lock
Lock bits (2)
• Power save modes:
Idle and power-down
• Six interrupt sources
• Most instructions execute in 0.3 ms
• CMOS and TTL compatible
• Maximum speed: 40 MHz @ Vcc = 3.3V
• Industrial temperature available
• Packages available:
40-pin DIP
44-pin PLCC
44-Pin PQFP
• 4K x 8 ROM (IS80LV51 only)
• 128 x 8 RAM
• Two 16-bit Timer/Counters
• Full duplex serial channel
• Boolean processor
• Four 8-bit I/O ports, 32 I/O lines
• Memory addressing capability
64K ROM and 64K RAM
• Programmable lock
Lock bits (2)
• Power save modes:
Idle and power-down
• Six interrupt sources
• Most instructions execute in 0.3 ms
• CMOS and TTL compatible
• Maximum speed: 40 MHz @ Vcc = 3.3V
• Industrial temperature available
• Packages available:
40-pin DIP
44-pin PLCC
44-Pin PQFP

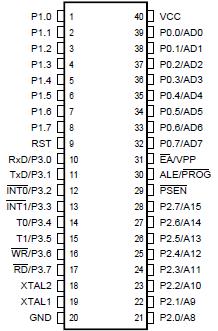

IS80LV51 Connection Diagram
IS80LV51
PDF/DataSheet Download
- Datasheet: IS80LV51
- File Size: 347915 KB
- Manufacturer: ISSI [Integrated Silicon Solution, Inc]
- Click here to Download
