ISL5729IN

Series: -
Mounting Type: Surface Mount
Number of Bits: 10
Settling Time: -
Number of Converters: 2
Voltage Supply Source: Analog and Digital
Data Interface: Parallel
Operating Temperature: -40°C ~ 85°C
Packaging: Tray
Number of Outputs and Type: 4 Current, Unipolar
Supplier Device Package: 48-TQFP (7x7)
Package / Case: 48-LQFP
Manufacturer: Intersil
Sampling Rate (Per Second): 130M
Power Dissipation (Max): 274mW


Features:

•Speed Grades . . . . . . . . . . . . . . . . 130M and 210+MSPS
•Low Power . . . . . 233mW with 20mA Output at 130MSPS
•Adjustable Full Scale Output Current. . . . .  2mA to 20mA
•Guaranteed Gain Matching < 0.14dB
•+3.3V Power Supply
•3V LVCMOS Compatible Inputs
•Excellent Spurious Free Dynamic Range(70dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
•UMTS Adjacent Channel Power = 65dB at 19.2MHz
•EDGE/GSM SFDR = 83dBc at 11MHz in 20MHz Window
•Dual, 3.3V, Lower Power Replacement for AD9763


Application

•Cellular Infrastructure - Single or Multi-Carrier: IS-136, IS-95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
•BWA Infrastructure
•Quadrature Transmit with IF Range 080MHz
•Medical/Test Instrumentation and Equipment
•Wireless Communication Systems

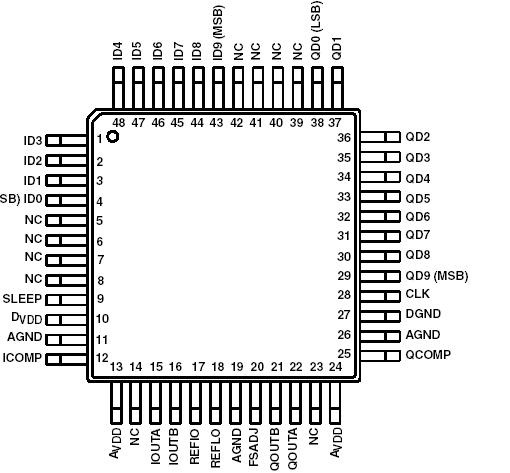

Pinout




Specifications

Digital Supply Voltage DV_DD to DGND . . . . . . . . . . . . . . . . . . +3.6V
Analog Supply Voltage AV_DD to AGND. . . . . . . . . . . . . . . . . . +3.6V
Grounds, AGND TO DGND . . . . . . . . . . . . . . . . . . . . -0.3V to +0.3V
Digital Input Voltages (DATA, CLK, SLEEP). . . . . . . . . DV_DD + 0.3V
Reference Input Voltage Range. . . . . . . . . . . . . . . . . . AV_DD + 0.3V
Analog Output Current (IOUT) . . . . . . . . . . . . . . . . . . . . . . . . . 24mA


Description

  The ISL5729 is a dual 10-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high speed, low power, D/A (digital to analog) converter, designed specifically for use in high performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols.
  This device complements the CommLink ISL5x61 and ISL5x29 families of high speed converters, which include 8-, 10-, 12-, and 14-bit devices.


Parameters:

Technical/Catalog Information	ISL5729IN
Vendor	Intersil
Category	Integrated Circuits (ICs)
Data Interface	Parallel
Number of Bits	10
Operating Temperature	-40°C ~ 85°C
Package / Case	48-LQFP
Packaging	Tray
Voltage Supply Source	Analog and Digital
Settling Time	-
Drawing Number	*
Number of Converters	2
Power Dissipation (Max)	274mW
Number of Outputs and Type	4 Current, Unipolar
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	ISL5729IN ISL5729IN
