General Description
ISL6413 Maximum Ratings
Supply Voltage VIN, PVCC, VIN_LDO. . . . . . . . . .GND -0.3V to +5.0V
ESD Classification
Human Body Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3kV
Machine Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBDV
ESD Classification
Human Body Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3kV
Machine Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TBDV
ISL6413 Features
• Fully Integrated Synchronous Buck Regulator + Dual LDO
• High Output Current (For QFN package)
- PWM, 1.8V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400mA
- LDO1, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
- LDO2, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
• Ultra-Compact DC-DC Converter Design
• Stable with Small Ceramic Output Capacitors
• High conversion efficiency
• Low Shutdown supply current
• Ultra-Low Dropout Voltage for LDOs
- LDO1, 2.84V. . . . . . . . . . . . . . . 125mV (typ.) at 300mA
- LDO2, 2.84V. . . . . . . . . . . . . . . 100mV (typ.) at 200mA
• Ultra-Low Output Voltage Noise
- <30µVRMS (typ.) for LDO2 (VCO Supply)
• PG_LDO, PG_PWM and PG_PWM outputs
• Extensive circuit protection and monitoring features
- Over voltage protection
- Over current protection
- Shutdown
- Thermal Shutdown
• Integrated RESET output for microprocessor reset
• Proven Reference Design for Total WLAN System Solution
• QFN Package
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
- Near Chip-Scale Package Footprint Improves PCB Efficiency and Is Thinner in Profile
• High Output Current (For QFN package)
- PWM, 1.8V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400mA
- LDO1, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 300mA
- LDO2, 2.84V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mA
• Ultra-Compact DC-DC Converter Design
• Stable with Small Ceramic Output Capacitors
• High conversion efficiency
• Low Shutdown supply current
• Ultra-Low Dropout Voltage for LDOs
- LDO1, 2.84V. . . . . . . . . . . . . . . 125mV (typ.) at 300mA
- LDO2, 2.84V. . . . . . . . . . . . . . . 100mV (typ.) at 200mA
• Ultra-Low Output Voltage Noise
- <30µVRMS (typ.) for LDO2 (VCO Supply)
• PG_LDO, PG_PWM and PG_PWM outputs
• Extensive circuit protection and monitoring features
- Over voltage protection
- Over current protection
- Shutdown
- Thermal Shutdown
• Integrated RESET output for microprocessor reset
• Proven Reference Design for Total WLAN System Solution
• QFN Package
- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Product Outline
- Near Chip-Scale Package Footprint Improves PCB Efficiency and Is Thinner in Profile
ISL6413 Typical Application
• WLAN Cards
- PCMCIA, Cardbus32, MiniPCI Cards
- Compact Flash Cards
• Liberty Chipset
• Hand-Held Instruments
- PCMCIA, Cardbus32, MiniPCI Cards
- Compact Flash Cards
• Liberty Chipset
• Hand-Held Instruments

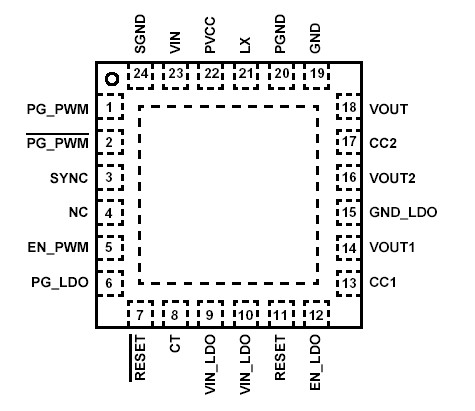

ISL6413 Connection Diagram
ISL6413
PDF/DataSheet Download
- Datasheet: ISL6413
- File Size: 376832 KB
- Manufacturer: INTERSIL
- Click here to Download
- ·ISL12026
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IBZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12026IVZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 481227 KB
- ·ISL12027IB27AZ
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27AZ-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
- ·ISL12027IB27Z
- INTERSIL
- Real Time Clock/Calendar with EEPROM
- 465643 KB
- ·ISL12027IB27Z-T
- INTERSIL [Intersil Corporation]
- Real Time Clock/Calendar with EEPROM
- 424887 KB
ISL6413 Relative Products
ISL6412IRZ-TK
IC REG LDO TRIPLE OUTPUT 16-QFN
ISL6412IRZ
IC REG LDO TRIPLE OUTPUT 16-QFN
ISL6412IR-TK
IC REG LDO TRIPLE OUTPUT 16-QFN
ISL6412IR-T5K
IC REG LDO TRIPLE OUTPUT 16-QFN
ISL6412IR
IC REG LDO TRIPLE OUTPUT 16-QFN
ISL6412
The ISL6412 is an ultra low noise triple output LDO regulator with microprocessor reset circuit and is optimized for powering wireless chip sets. The IC accepts an input voltage range of 3.0V to 3.6V and provides three regulated output voltages: 1.8V (LDO1),...
