ISL6532CR General Description
ISL6532CR Maximum Ratings
5VSBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to +7V
P12V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GND - 0.3V to +14V
UGATE, LGATE, NCH. . . . . . . . . . . . . . . GND - 0.3V to P12V + 0.3V
All other Pins . . . . . . . . . . . . . . . . . . .GND - 0.3V to 5VSBY + 0.3V
ESD Classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Level 1
ISL6532CR Features
• Generates 2 Regulated Voltages
- Synchronous Buck PWM Controller with Standby LDO
- 3A Integrated Sink/Source Linear Regulator with
Accurate VDDQ/2 Divider Reference.
- Glitch-free Transitions During State Changes
• ACPI Compliant Sleep State Control
• Integrated VREF Buffer
• PWM Controller Drives Low Cost N-Channel MOSFETs
• 250kHz Constant Frequency Operation
• Tight Output Voltage Regulation
- Both Outputs: ±2% Over Temperature
• 5V or 3.3V Down Conversion
• Fully-Adjustable Outputs with Wide Voltage Range: Down
to 0.8V supports DDR and DDR2 Specifications
• Simple Single-Loop Voltage-Mode PWM Control Design
• Fast PWM Converter Transient Response
• Over Current Protection and Under/Over-Voltage
Monitoring of Both Outputs
• Integrated Thermal Shutdown Protection
• QFN Package Option
- QFN Compliant to JEDEC PUB95 MO-220 QFN - Quad
Flat No Leads - Product Outline
- QFN Near Chip Scale Package Footprint; Improves
PCB Efficiency, Thinner in Profile
ISL6532CR Typical Application
• Single and Dual Channel DDR Memory Power Systems in
ACPI compliant PCs
• Graphics cards - GPU and memory supplies
• ASIC power supplies
• Embedded processor and I/O supplies
• DSP supplies

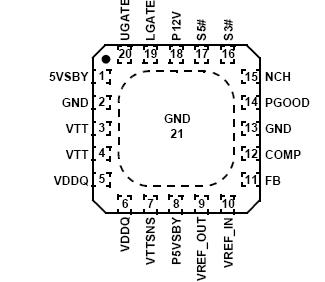

ISL6532CR Connection Diagram
