Part Number: ISP1109
Description: The ISP1109 is a Universal Serial Bus (USB) transceiver device that supports CEA-936-A, Mini-USB Analo...
- Table of contents:
ISP1109
-
Suppliers
DataSheet
General Description
ISP1109 General Description
The ISP1109 is a Universal Serial Bus (USB) transceiver device that supports CEA-936-A, Mini-USB Analog Carkit Interface. It is fully compliant with Universal Serial Bus Specification Rev. 2.0. The ISP1109 can transmit and receive serial data at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates.
The ISP1109 is available in HVQFN32 package.
ISP1109 Maximum Ratings
| Symbol | Parameter | Conditions | Min | Max | Unit |
| Voltage | |||||
| VCC | supply voltage | -0.5 | +7.0 | V | |
| VCC(I/O) | I/O supply voltage | -0.5 | +4.6 | V | |
| VI | input voltage | [1] | -0.5 | VCC(I/O)+0.5 | V |
| VBUS | VBUS input voltage | VI = -1.8 V to +5.4 V | -0.5 | +7.0 | V |
| VI(ID) | ID input voltage | -0.5 | +5.5 | V | |
| Vesd | electrostatic discharge voltage | ILI < 1 A | V | ||
| pins DP, DM, ID, VBUS,[2] [3] VCC, GNDA and GNDD |
-12 | +12 | kV | ||
| all other pins | -2 | +2 | kV | ||
| Current | |||||
| Ilu | latch-up current | - | 100 | mA | |
[2] Testing equipment limits measurement to only ±12 kV. 4.7 F capacitors needed on VBUS and REG3V3 (see Section 11).
[3] Equivalent to discharging a 100 pF capacitor through a 1.5 k resistor (Human Body Model).
ISP1109 Features
· Fully complies with Universal Serial Bus Specification Rev. 2.0
· Supports CEA-936-A, Mini-USB Analog Carkit Interface
· Can transmit and receive serial data at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates
· Supports Serial Parallel Interface (SPI) (up to 26 MHz) and I2C-bus (up to 400 kHz)serial interface to access control and status registers
· Supports Universal Asynchronous Receiver-Transmitter (UART) pass-through on the DP and DM lines
· Built-in analog switches to support analog audio signals multiplexed on the DP and DM lines
· Supports On-The-Go (OTG) Session Request Protocol (SRP)
· Supports Power-down mode, in which the whole chip consumes less than 20 mA power current
· 3.0 V to 5.25 V power supply input range (VCC)
· Supports wide range digital interfacing I/O voltage (VCC(I/O)) of 1.65 V to 3.6 V
· ±12 kV ESD protection at pins DP, DM, ID, VBUS, VCC, GNDA and GNDD
· Supports charger current switching (ISET) detection
· Full industrial grade operation from -40 °C to +85 °C
· Available in a small HVQFN32 (5 x 5 mm2) halogen-free and lead-free package.
· Supports CEA-936-A, Mini-USB Analog Carkit Interface
· Can transmit and receive serial data at full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) data rates
· Supports Serial Parallel Interface (SPI) (up to 26 MHz) and I2C-bus (up to 400 kHz)serial interface to access control and status registers
· Supports Universal Asynchronous Receiver-Transmitter (UART) pass-through on the DP and DM lines
· Built-in analog switches to support analog audio signals multiplexed on the DP and DM lines
· Supports On-The-Go (OTG) Session Request Protocol (SRP)
· Supports Power-down mode, in which the whole chip consumes less than 20 mA power current
· 3.0 V to 5.25 V power supply input range (VCC)
· Supports wide range digital interfacing I/O voltage (VCC(I/O)) of 1.65 V to 3.6 V
· ±12 kV ESD protection at pins DP, DM, ID, VBUS, VCC, GNDA and GNDD
· Supports charger current switching (ISET) detection
· Full industrial grade operation from -40 °C to +85 °C
· Available in a small HVQFN32 (5 x 5 mm2) halogen-free and lead-free package.
ISP1109 Typical Application
· Mobile phones

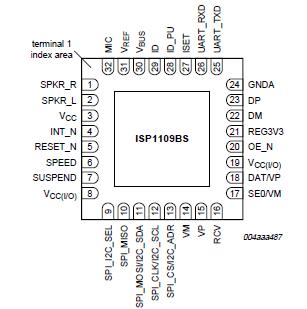

ISP1109 Connection Diagram
ISP1109
PDF/DataSheet Download
- Datasheet: ISP1109
- File Size: 302635 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
