Product Details

Description



Features:

· Complies with:
   · Universal Serial Bus Specification Rev. 2.0
   · Advanced Configuration and Power Interface (ACPI™), OnNow™ and USB power management requirements.
· Supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s)
· Self-powered capability
· USB suspend mode support
· Configurable number of ports
· Internal power-on reset and low voltage reset circuit
· Port status indicators
· Integrates high performance USB interface device with hub handler, Philips Serial Interface Engine (SIE) and transceivers
· Built-in overcurrent detection circuit
· Individual or ganged power switching, individual or global overcurrent protection, and non-removable port support by I/O pins configuration
· Simple I2C-bus (master/slave) interface to read device descriptor parameters, language ID, manufacturer ID, product ID, serial number ID and string descriptors from a dedicated external EEPROM, or to allow the microcontroller to set up hub descriptors
· Visual USB traffic monitoring (GoodLink™) for the upstream facing port
· Uses 12 MHz crystal oscillator with on-chip Phase-Locked Loop (PLL) for low ElectroMagnetic Interference (EMI)
· Full industrial operating temperature range from 0 °C to 70 °C
· Available in LQFP64 package



Application

· Monitor hubs
· Docking stations for notebooks
· Internal hub for USB motherboards
· Hub for extending Easy PCs
· Hub boxes.



Pinout

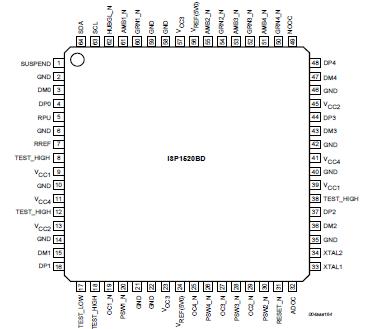

  Connection Diagram


Specifications

Symbol Parameter Conditions Min Max Unit
VCC supply voltage 3.3V -0.5 +4.6 V
VREF(5V0) input reference voltage 5.0 V -0.5 +5.25 V
VI(5V0) input voltage on 5 V buffers 3.0 V < VCC < 3.6 V                     [1] -0.5 +6.0 V
VI(3V3) input voltage on 3.3 V buffers 3.0 V < VCC < 3.6 V -0.5 +4.6 V
VO(3V3) output voltage on 3.3 V buffers -0.5 +4.6 V
Ilu latch-up current VI < 0 or VI > VCC - 100 mA
Vesd electrostatic discharge voltage on pins DM1 to DM4, DP1 to DP4, [2][3]
OC1_N to OC4_N, and all
VREF(5V0) and GND pins; ILI < 1 A
-4000 +4000 V
on all other pins; ILI < 1 mA          [2][3] -2000 +2000 V
Tstg storage temperature -40 +125
[1] Valid only when supply voltage is present.
[2] Test method available on request.
[3] Equivalent to discharging a 100 pF capacitor via a 1.5 k  resistor (Human Body Model).



Description

The ISP1520 is a stand-alone Universal Serial Bus (USB) hub controller IC that complies with Universal Serial Bus Specification Rev. 2.0. It supports data transfer at high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s).

The upstream facing port can be connected to a Hi-Speed USB host or hub or to an Original USB host or hub. If the upstream facing port is connected to a Hi-Speed USB host or hub, then the ISP1520 will operate as a Hi-Speed USB hub. That is, it will support high-speed, full-speed and low-speed devices connected to its downstream facing ports. If the upstream facing port is connected to an Original USB host or hub,then the ISP1520 will operate as an Original USB hub. That is, high-speed devices that are connected to its downstream facing ports will operate in full-speed mode instead.

The ISP1520 is a full hardware USB hub controller. All Original USB devices connected to the downstream facing ports are handled using a single Transaction Translator (TT), when operating in a cross-version environment. This allows the whole 480 Mbit/s upstream bandwidth to be shared by all the Original USB devices on its downstream facing ports.

The ISP1520 has four downstream facing ports. If not used, ports 3 and 4 can be disabled. The vendor ID, product ID and string descriptors on the hub are supplied by the internal ROM; they can also be supplied by an external I2C-bus™ EEPROM or a microcontroller.

The ISP1520 IC is suitable for self-powered hub designs.

An analog overcurrent detection circuitry is built into the ISP1520, which can also accept digital overcurrent signals from external circuits; for example, Micrel MOSFET switch MIC2026. The circuitry can be configured to trip on a global or an individual overcurrent condition.

Each port comes with two status indicator LEDs.

Target applications of the ISP1520 are monitor hubs, docking stations for notebooks, internal USB hub for motherboards, hub for extending Intel® Easy PCs, hub boxes, and so on.
