Features: · Complies fully with:
· Universal Serial Bus Specification Rev. 2.0
· Most Device Class specifications
· ACPI™, OnNow™ and USB power management requirements.
· Supports data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s)
· High performance USB peripheral controller with integrated Serial Interface
Engine (SIE), Parallel Interface Engine (PIE), FIFO memory and data transceiver
· Automatic Hi-Speed USB mode detection and Original USB fall-back mode
· Supports sharing mode
· Supports VBUS sensing
· High-speed DMA interface
· Fully autonomous and multiconfiguration DMA operation
· 7 IN endpoints, 7 OUT endpoints and a fixed control IN/OUT endpoint
· Integrated physical 8 kbytes of multiconfiguration FIFO memory
· Endpoints with double buffering to increase throughput and ease real-time data transfer
· Bus-independent interface with most microcontrollers and microprocessors
· 12 MHz crystal oscillator with integrated PLL for low EMI
· Software-controlled connection to the USB bus (SoftConnect™)
· Low-power consumption in operation and power-down modes; suitable for use in bus-powered USB devices
· Supports Session Request Protocol (SRP) that complies with On-The-Go Supplement to the USB Specification Rev. 1.0a
· Internal power-on and low-voltage reset circuits; also supports software reset
· Operation over the extended USB bus voltage range (DP, DM and VBUS)
· 5 V tolerant I/O pads at 3.3 V
· Operating temperature range from -40 °C to +85 °C
· Available in HVQFN56 halogen-free and lead-free package.Application· Personal digital assistant
· Digital video camera
· Digital still camera
· 3G mobile phone
· MP3 player
· Communication device, for example: router and modem
· Printer

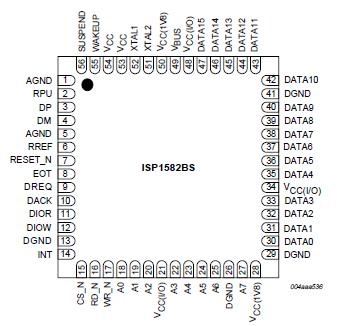

· Scanner.Pinout
Specifications
| Symbol |
Parameter |
Conditions |
Min |
Max |
Unit |
| VCC |
supply voltage |
|
-0.5 |
+4.6 |
V |
| VCC(I/O) |
I/O pad supply voltage |
|
-0.5 |
+4.6 |
V |
| VI |
input voltage |
[1] |
-0.5 |
VCC+0.5 |
V |
| Ilu |
latch-up current |
VI < 0 or VI >VCC |
- |
100 |
mA |
| Vesd |
electrostatic discharge voltage |
ILI < 1 A |
-2000 |
+2000 |
V |
| Tstg |
storage temperature |
|
-40 |
+125 |
|
[1] The maximum value for 5 V tolerant pins is 6 V.DescriptionThe ISP1582 is a cost-optimized and feature-optimized Hi-Speed Universal Serial Bus (USB) peripheral controller. It fully complies with Universal Serial Bus Specification Rev. 2.0, supporting data transfer at high-speed (480 Mbit/s) and full-speed (12 Mbit/s).
The ISP1582 provides high-speed USB communication capacity to systems based on microcontrollers or microprocessors. It communicates with a microcontroller or microprocessor of a system through a high-speed general-purpose parallel interface.
The ISP1582 supports automatic detection of Hi-Speed USB system operation. Original USB fall-back mode allows the device to remain operational under full-speed conditions. It is designed as a generic USB peripheral controller so that it can fit into all existing device classes, such as imaging class, mass storage devices, communication devices, printing devices and human interface devices.
The internal generic Direct Memory Access (DMA) block allows easy integration into data streaming applications.
The modular approach to implementing a USB peripheral controller allows the designer to select the optimum system microcontroller from the wide variety available.
The ability to reuse existing architecture and firmware investments shortens the development time, eliminates risk and reduces cost. The result is fast and efficient development of the most cost-effective USB peripheral solution.
The ISP1582 is ideally suited for many types of peripherals, such as: printers, scanners, digital still cameras, USB-to-Ethernet links, cable and DSL modems. The low power consumption during suspend mode allows easy design of equipment that is compliant to the ACPI™, OnNow™ and USB power management requirements.
The ISP1582 also incorporates features such as SoftConnect™, a reduced frequency crystal oscillator, and integrated termination resistors. These features allow significant cost savings in system design and easy implementation of advanced USB functionality into PC peripherals.
