ITC117P

Solid State Relays Integrated

product image

ITC117P Picture
See larger image
SeekIC No. : 0095985 Detail

ITC117P: Solid State Relays Integrated

ITC117P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ITC117P
Mfg:
Clare
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product Type : PCB Mount Load Voltage Rating : 350 A
Load Current Rating : 120 mA Package / Case : SOIC-16

Description

Mounting Style :
Control Voltage Range :
Contact Form :
Output Device :
Product Type : PCB Mount
Load Current Rating : 120 mA
Load Voltage Rating : 350 A
Package / Case : SOIC-16


Features:

• Small 16 Pin SOIC Package (PCMCIA Compatible)
• Board Space and Cost Savings
• 2mW Hookswitch Drive Power (Logic Compatible)
• No Moving Parts
• 3750VRMS Input/Output Isolation
• FCC Compatible Part 68
• Full-Wave Bridge Rectifier
• Darlington Transistor for Electronic Inductor "Dry" Circuits
• Full Wave Current Detector for Ring Signal or Loop Current Detect
• JEDEC Standard Pin Out


Application

• Data/Fax Modem
• Voice Mail Systems
• Telephone Sets
• Computer Telephony Integration
• Set Top Box Modems


Pinout

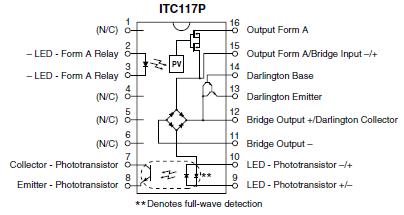

Connection Diagram


Specifications

Parameter Min Typ Max Units
Total Package Dissipation - - 11 W
Isolation Voltage -
Input to Output 3750 - - VRMS
Operational Temperature -40 - +85
Storage Temperature -40 - +125
Soldering Temperature
(10 Seconds Max.)		 - - +220

1 Above 25° derate linerity 8.33mw/°C
Total Power Dissipation (PD):
PD=PHOOKSWITCH + PBRIDGE + PDARLINGTON + PLED
PD=(RDS(on)) (I2L) + 2(VF)(IL) + (VCE)(IL) + (VLED)(IF)
WHERE:
RDS(on) = Maximum realy on resistance
IL          = Maximum loop current
VF         = Maximum diode forward voltage
VCE       = Maximum voltage collector to emitter
VLED      = Maximum LED forward voltage
IF          = Maximum LED current

Absolute Maximum Ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device. Functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this data sheet is not implied. Exposure of the device to the absolute maximum ratings for an extended period may degrade the device and effect its reliability.




Description

The Integrated Telecom Circuit ITC117P  combines a 1-Form-A solid state relay, bridge rectifier, Darlington transistor and optocoupler into one 16 pin SOIC package, consolidating designs and reducing component count in telecom applications. The ITC117's optocoupler provides for full wave detection of ring signals.




Parameters:

Technical/Catalog InformationITC117P
VendorClare
CategoryICs, Integrated Circuits, Semiconductors
ApplicationTelecommunication
TypeTelecom Circuit
Mounting TypeSurface (SMD, SMT)
Package Name16-SOIC
Supply Voltage5.00 V [Typ]
PackagingTube
Operating Temperature-40 °C [Min]
Operating Temperature85 °C [Max]
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ITC117P
ITC117P
CLA131 ND
CLA131ND
CLA131
