IVC102

Features: ·ON-CHIP INTEGRATING CAPACITORS·GAIN PROGRAMMED BY TIMING·LOW INPUT BIAS CURRENT: 750fA max·LOW NOISE·LOW SWITCH CHARGE INJECTION·FAST PULSE INTEGRATION·LOW NONLINEARITY: 0.005% typ·14-PIN DIP, SO-14 SURFACE MOUNTApplication·PRECISION LOW CURRENT MEASUREMENT·PHOTODIODE MEASUREMENTS·IONIZ...

product image

IVC102 Picture
See larger image
SeekIC No. : 004381376 Detail

IVC102: Features: ·ON-CHIP INTEGRATING CAPACITORS·GAIN PROGRAMMED BY TIMING·LOW INPUT BIAS CURRENT: 750fA max·LOW NOISE·LOW SWITCH CHARGE INJECTION·FAST PULSE INTEGRATION·LOW NONLINEARITY: 0.005% typ·14-PIN...

IVC102 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IVC102
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·ON-CHIP INTEGRATING CAPACITORS
·GAIN PROGRAMMED BY TIMING
·LOW INPUT BIAS CURRENT: 750fA max
·LOW NOISE
·LOW SWITCH CHARGE INJECTION
·FAST PULSE INTEGRATION
·LOW NONLINEARITY: 0.005% typ
·14-PIN DIP, SO-14 SURFACE MOUNT


Application

·PRECISION LOW CURRENT MEASUREMENT
·PHOTODIODE MEASUREMENTS
·IONIZATION CHAMBER MEASUREMENTS
·CURRENT/CHARGE-OUTPUT SENSORS
·LEAKAGE CURRENT MEASUREMENT


Pinout

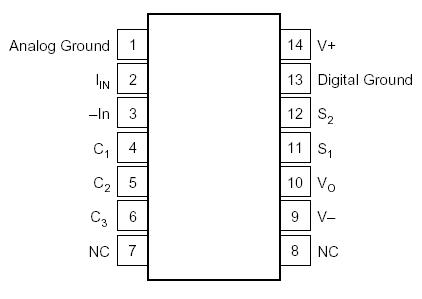

Connection Diagram


Specifications

Supply Voltage, V+ to V ...........................................36V
Logic Input Voltage .............................................V to V+
Output Short Circuit to Ground ........................Continuous
Operating Temperature ......................40°C to +125°C
Storage Temperature ........................ 55°C to +125°C
Lead Temperature (soldering, 10s) ........................300°C


Description

The IVC102 is a precision integrating amplifier with FET op amp, integrating capacitors, and low leakage FET switches. It integrates low-level input current for a user-determined period, storing the resulting voltage on the integrating capacitor. The output voltage can be held for accurate measurement. The IVC102 provides a precision, lower noise alternative to conventional transimpedance op amp circuits that require a very high value feedback resistor.

The IVC102 is ideal for amplifying low-level sensor currents from photodiodes and ionization chambers. The input signal current can be positive or negative. TTL/CMOS-compatible timing inputs control the integration period, hold and reset functions to set the effective transimpedance gain and to reset (discharge) the integrator capacitor.

Package options include 14-Pin plastic DIP and SO-14 surface-mount packages. Both are specified for the 40°C to 85°C industrial temperature range.
