General Description
IW4040B General Description
The IW4040B is ripple-carry binary counter. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times.
IW4040B Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage (Referenced to GND) | -0.5 to +20 | V |
| VIN | DC Input Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
| VOUT | DC Output Voltage (Referenced to GND) | -0.5 to VCC +0.5 | V |
| IIN | DC Input Current, per Pin | ±10 | mA |
| PD | Power Dissipation in Still Air, Plastic DIP+ SOIC Package+ |
500*1 | mW |
| Ptot | Power Dissipation per Output Transistor | 100 | mW |
| Tstg | Storage Temperature | -65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds (Plastic DIP or SOIC Package) |
260 | °C |
*Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
*1 For TA=-55 to 100°C (package plastic DIP), for TA=-55 to 65°C (package SOIC) +Derating - Plastic DIP: - 12 mW/°C from 100°Ñ to 125°C SOIC Package: : - 7 mW/°C from 65°Ñ to 125°C
IW4040B Features
· Operating Voltage Range: 3.0 to 18 V
· Maximum input current of 1 mA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
· Noise margin (over full package temperature range):
1.0 V min @ 5.0 V supply
2.0 V min @ 10.0 V supply
2.5 V min @ 15.0 V supply
· Maximum input current of 1 mA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
· Noise margin (over full package temperature range):
1.0 V min @ 5.0 V supply
2.0 V min @ 10.0 V supply
2.5 V min @ 15.0 V supply

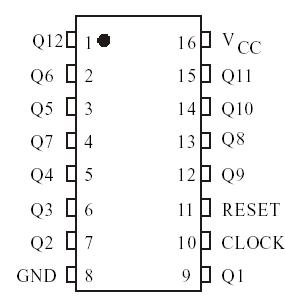

IW4040B Connection Diagram
