K4H560438E-NLB0
-
Suppliers
DataSheet
General Description
K4H560438E-NLB0 Maximum Ratings
Parameter |
Symbol |
Value |
Unit |
| Voltage on any pin relative to VSS | VIN, VOUT |
-0.5 ~ 3.6 |
V |
| Voltage on VDD & VDDQ supply relative to VSS | VDD, VDDQ |
-1.0 ~ 3.6 |
V |
| Storage temperature | TSTG |
-55 ~ +150 |
|
| Power dissipation | PD |
1.5 |
W |
| Short circuit current | IOS |
50 |
mA |
K4H560438E-NLB0 Features
• Double-data-rate architecture; two data transfers per clock cycle
• Bidirectional data strobe(DQS)
• Four banks operation
• Differential clock inputs(CK and CK)
• DLL aligns DQ and DQS transition with CK transition
• MRS cycle with address key programs
-. Read latency 2, 2.5 (clock)
-. Burst length (2, 4, 8)
-. Burst type (sequential & interleave)
• All inputs except data & DM are sampled at the positive going edge of the system clock(CK)
• Data I/O transactions on both edges of data strobe
• Edge aligned data output, center aligned data input
• DM for write masking only (x4, x8)
• Auto & Self refresh
• 7.8us refresh interval(8K/64ms refresh)
• Maximum burst refresh cycle : 8
• 54pin sTSOP(II)-300 package
• Bidirectional data strobe(DQS)
• Four banks operation
• Differential clock inputs(CK and CK)
• DLL aligns DQ and DQS transition with CK transition
• MRS cycle with address key programs
-. Read latency 2, 2.5 (clock)
-. Burst length (2, 4, 8)
-. Burst type (sequential & interleave)
• All inputs except data & DM are sampled at the positive going edge of the system clock(CK)
• Data I/O transactions on both edges of data strobe
• Edge aligned data output, center aligned data input
• DM for write masking only (x4, x8)
• Auto & Self refresh
• 7.8us refresh interval(8K/64ms refresh)
• Maximum burst refresh cycle : 8
• 54pin sTSOP(II)-300 package

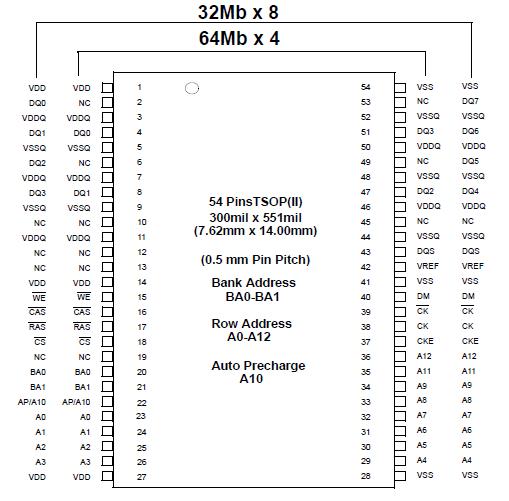

K4H560438E-NLB0 Connection Diagram
K4H560438E-NLB0
PDF/DataSheet Download
- Datasheet: K4H560438E-NLB0
- File Size: 219982 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
