Product Details

Description



Features:

· Process Technology: Full CMOS
· Organization: 1M x16
· Power Supply Voltage: 2.7~3.6V
· Low Data Retention Voltage: 1.5V(Min)
· Three State Outputs
· Package Type: 48-TSOP1-1220F, 48-TBGA - 7.00x7.00

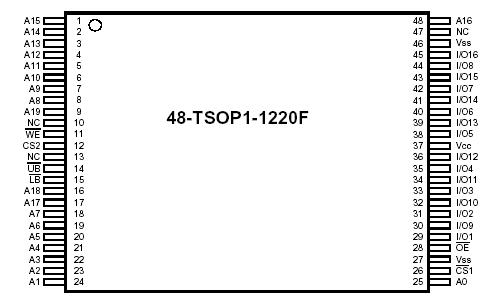

Pinout

Connection Diagram


Specifications

Item Symbol Ratings Unit
Voltage on any pin relative to Vss VIN,VOUT -0.2 to VCC+0.3V(Max.4.2V) V
Voltage on Vcc supply relative to Vss VCC -0.2 to 4.2 V
Power Dissipation PD 1.0 W
Storage temperature TSTG -65 to 150 °C
Operating Temperature TA -40 to 85 °C

1. Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Functional operation should be restricted to recommended operating condition. Exposure to absolute maximum rating conditions for extended periods may affect reliability.




Description

The K6F1616T6B families are fabricated by SAMSUNG's advanced full CMOS process technology. The families support industrial operating temperature ranges. The families also support low data retention voltage for battery back-up operation with low data retention current.
