`Two linear.taper digital potentiometers
`GW resistor taps per potentiometer
`End.to.end resistance 2.5k,10k,50kor100k
`Potentiometer control and memory access via 2-wire interface (I²C like)
`Low wiper resistanceU typically 80
`Four non.volatile wiper settings for each potentiometer
`Recall of wiper settings at power up
`2.0 to 6.0 volt operation
`Standby current less than  1A
`1,000,000 nonvolatile WRITE cycles
`100 year nonvolatile memory data retention

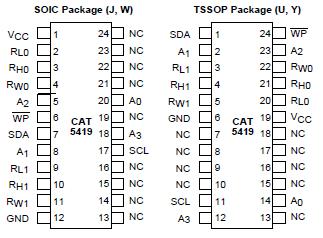

`24-lead SOIKU 24-lead TSSOP and  BGA
`Write protection for data register

The CAT5419 is two Digitally ProgrammablePotentiometers (DPP^TM) integrated with control logic and 16 bytes of NVRAM memory.

A separate 6-bit control register (WCR) independently controls the wiper tap position for each DPP. Associated with each wiper control register are four 6-bit non- volatile memory data registers (DR) used for storing up to four wiper settings. Writing to the wiper control register or any of the non-volatile data registers is via a 2-wire C²-like). On power-up, the contents of the first data register (DR0) for each of the two potentiometers is automatically loaded into its respective wiper control registers (WCR).

The Write Protection (W P) pin protects against inadvertent programming of the data register.

The CAT5419 can be used as a potentiometer or as a two terminal, variable resistor. The CAT5419 is intended for circuit level or system level adjustments in a wide variety of applications.
