PinoutSpecifications Characteristic Symbol Value Unit Supply voltage VCC 10 V Power dissipation PD 1250 mW Operating temperature TOPR -20 ~+70 Storage temperature TSTG -55 ~ +125 DescriptionThe KA2197D is a monolithic integrated circuit designe...
KA2197D: PinoutSpecifications Characteristic Symbol Value Unit Supply voltage VCC 10 V Power dissipation PD 1250 mW Operating temperature TOPR -20 ~+70 Storage ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Characteristic | Symbol |
Value |
Unit |
Supply voltage | VCC |
10 |
V |
Power dissipation | PD |
1250 |
mW |
Operating temperature | TOPR |
-20 ~+70 |
|
Storage temperature | TSTG |
-55 ~ +125 |

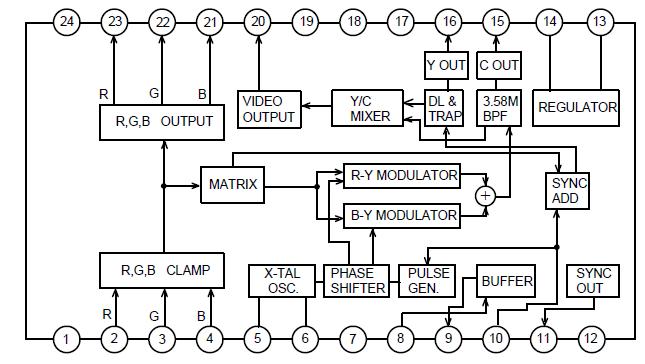

The KA2197D is a monolithic integrated circuit designed for RGB encoder of video system. This KA2197D contains matrix of R-Y/B-Y, modulator, pulse generator, regulator and built in BPF of chroma and delay line of luminance and Y/C output using S-VHS system.
The KA2197D is suitable for video equipment.
