Slew Rate
:
Output Current
:
Number of Channels
: 2
Packaging
: Tube
Shutdown
: No
Maximum Operating Temperature
: + 85 C
Common Mode Rejection Ratio (Min)
: 50 dB
Input Offset Voltage
: 7 mV
Mounting Style
: Through Hole
Operating Supply Voltage
: 5 V, 9 V, 12 V, 15 V
Package / Case
: DIP-14
Input Bias Current (Max)
: 250 nA
Features: • Internally Frequency Compensated for Unity Gain
• Large DC Voltage Gain: 100dB
• Wide Power Supply Range:
KA224 / KA224A, KA324 / KA324A : 3V~32V (or ±1.5 ~ 16V)
KA2902: 3V~26V (or ±1.5V ~ 13V)
• Input Common Mode Voltage Range Includes Ground
• Large Output Voltage Swing: 0V to VCC -1.5V

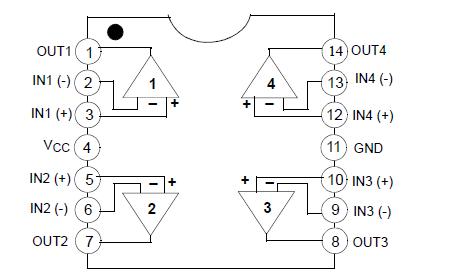

• Power Drain Suitable for Battery OperationPinout
Specifications
| Parameter |
Symbol |
KA224/KA224A |
KA324/KA324A |
KA2902 |
Unit |
| Power Supply Voltage |
VCC |
±16 or 32 |
±13 or 32 |
±13 or 26 |
V |
| Differential Input Voltage |
VI(DIFF) |
32 |
32 |
26 |
V |
| Input Voltage |
VI |
-0.3 to +32 |
-0.3 to +32 |
-0.3 to +26 |
V |
Output Short Circuit to GND
Vcc15V, TA=25°C(One Amp) |
- |
Continuous |
Continuous |
Continuous |
- |
Power Dissipation, TA=25°C
14-DIP
14-SOP |
PD |
1310
640
|
1310
640
|
1310
640
|
mW |
| Operating Temperature Range |
TOPR |
-25 ~ +85 |
0 ~ +70 |
40 ~ +85 |
|
| Storage Temperature Range |
TSTG |
-65 ~ +150 |
-65 ~ +150 |
-65 ~ +150 |
|
DescriptionThe KA324 series consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP Amp circuits which now can be easily implemented in single power supply systems.
Parameters: | Technical/Catalog Information | KA2902 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | General Purpose |
| Number of Circuits | 4 - Quad |
| Package / Case | 14-DIP (300 mil) |
| Slew Rate | - |
| Gain Bandwidth Product | - |
| Current - Supply | 1mA |
| Current - Output/Channel | 40mA |
| Voltage - Supply, Single/Dual (±) | 3 V ~ 26 V, ±1.5 V ~ 13 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 40nA |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Input Offset | 1500V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | KA2902
KA2902
|
KA2902 Data Sheet
