KA334

Output Current :
Number of Channels : 2
Packaging : Tube
Slew Rate : 1 V/us
Shutdown : No
Maximum Operating Temperature : + 85 C
Common Mode Rejection Ratio (Min) : 60 dB
Mounting Style : Through Hole
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V
Package / Case : DIP-8
Input Offset Voltage : 60 mV
Input Bias Current (Max) : 2.5 uA


Features:

• Output Current upto 1A
• Operates at Low Voltage (VS(MIN)=4V)
• Low Saturation Voltage (Ip=0.5A, VO=1.5V)
• Thermal Shutdown (Tsd=145°C)
• Ground Compatible Inputs
• Large Common-mode & Differential-mode Range


Application

• Servo Amplifier
• Power Supply
• Compact Disc
• VCR
• Monitor

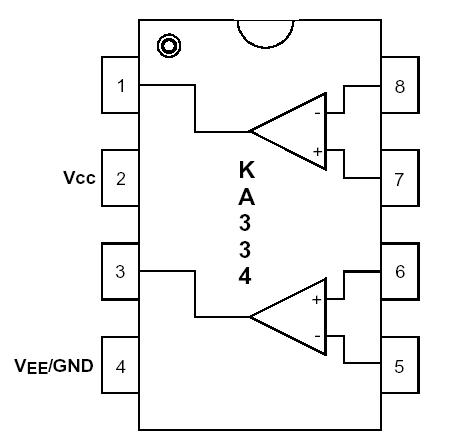

Pinout




Specifications

Parameter	Symbol	Value	Unit
Supply Voltage	VS	40	V
Input Voltage	Vi	VS	-
Differential Input Voltage	Vi	±VS	-
Dc Output Current	IO	1	A
Peak Output Current (non repetitive)	IP	1.5	A
Power dissipation at: Tamb=50°C	Rtot	1	W
Operating Temperature Range	TOP	-40 to 85	°C
Storage and Junction Temperature	Tstg, Tj	-40 to 150	°C

Description

The KA334 is a high-power dual operational amplifier provided as a 8-DIP package. The operational amplifier is designed for low impedance loads and will deliver output current upto 1A. The KA334 can be used in a wide range of applications in cluding power supply, VCR, monitor, servo amplifier, compact disc, etc
