KA5532

Operating Supply Voltage :
Output Current :
Number of Channels : 2
Packaging : Tube
Shutdown : No
Common Mode Rejection Ratio (Min) : 70 dB
Input Offset Voltage : 4 mV
Mounting Style : Through Hole
Maximum Operating Temperature : + 70 C
Input Bias Current (Max) : 800 nA
Slew Rate : 8 V/us
Package / Case : PDIP W


Features:

• Internal Frequency Compensation
• Slew Rate: 8V/µs
• Input Noise Voltage:8nV  ⁄Hz (fo = 30Hz)
• Full Power Bandwidth: 140KHz

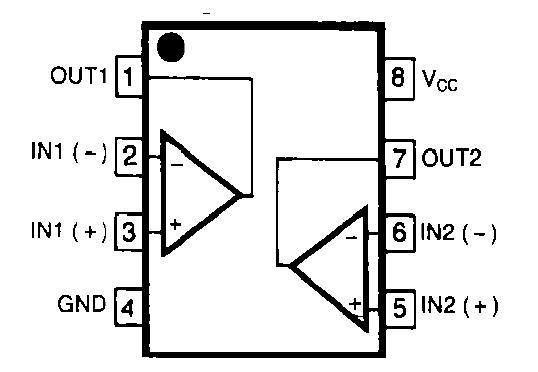

Pinout




Specifications

Parameter	Symbol	KA5532	Unit
Power Supply Voltage Differential Input Voltage Input Voltage	VCC V(DIFF) VI	±22 ±13 Supply Voltage	V V V
Power Dissipation, TA = 25°C 8-DIP	PD	1100	mW
Operating Temperature Range	TOPR	0 ~ +70	°C

Description

The KA5532 is a internally compensated dual low noise OP AMP. The high small signal and power bandwidth provides superior performance in high quality AMP, all control circuits, and telephone applications.


Parameters:

Technical/Catalog Information	KA5532
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	General Purpose
Number of Circuits	2 - Dual
Package / Case	8-DIP
Slew Rate	8 V/s
Gain Bandwidth Product	10MHz
Current - Supply	6mA
Current - Output/Channel	38mA
Voltage - Supply, Single/Dual (±)	-
Output Type	-
-3db Bandwidth	-
Current - Input Bias	200nA
Operating Temperature	0°C ~ 70°C
Voltage - Input Offset	500V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	KA5532 KA5532
