KA7305

Features: * 5 Steps sample & hold.* 4 dB ~ 32 dB AGC gain control.* Built in 2 comparators for EE mode control.* EE mode WND / BLK selectable.* Gamma g = 0.45 / Linear output separation.* Built in OP-AMP for AGC loop.* 3 Mode set-up control.* 2 Mode white / clip control.* 75 Ohm video driver &...

product image

KA7305 Picture
See larger image
SeekIC No. : 004383764 Detail

KA7305: Features: * 5 Steps sample & hold.* 4 dB ~ 32 dB AGC gain control.* Built in 2 comparators for EE mode control.* EE mode WND / BLK selectable.* Gamma g = 0.45 / Linear output separation.* Built ...

KA7305 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA7305
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 5 Steps sample & hold.
* 4 dB ~ 32 dB AGC gain control.
* Built in 2 comparators for EE mode control.
* EE mode WND / BLK selectable.
* Gamma g = 0.45 / Linear output separation.
* Built in OP-AMP for AGC loop.
* 3 Mode set-up control.
* 2 Mode white / clip control.
* 75 Ohm video driver & sag compensation.


Pinout

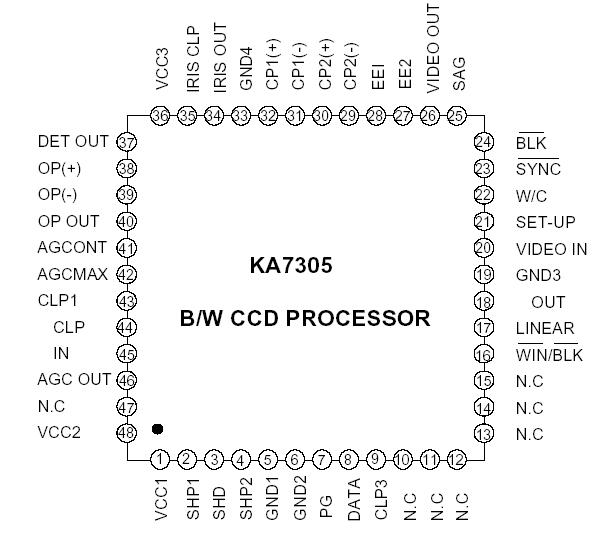

Connection Diagram


Specifications

Characteristics
Symbol
Value
Unit
Power Source Voltage

Power Dissipation

Operating Temperature

Storage Temperature
Vcc

Pd

Topr

Tstg
7

500

-20 ~ 75

-65 ~ 150
V

mW

°C

°C



Description

The KA7305 is a monolithic integrated circuit for B/W CCD camera 1 chip signal processor.

KA7305 contains functional block from CDS to video driver and 2 comparators for EE mode. Also, KA7305 performs a low power onsumption and a small dimension of set implementation by decreasing external parts as a 1 chip.
