KA741

Operational Amplifiers - Op Amps Single Op Amp 36V 25mA; 106dB

product image

KA741 Picture
See larger image
SeekIC No. : 00301715 Detail

KA741: Operational Amplifiers - Op Amps Single Op Amp 36V 25mA; 106dB

KA741 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA741
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Channels : 1 Common Mode Rejection Ratio (Min) : 70 dB
Input Offset Voltage : 6 mV Input Bias Current (Max) : 500 nA
Mounting Style : Through Hole Package / Case : DIP-8
Slew Rate : 0.5 V/us Shutdown : No
Maximum Operating Temperature : + 70 C Packaging : Tube

Description

Operating Supply Voltage :
Output Current :
Number of Channels : 1
Packaging : Tube
Input Offset Voltage : 6 mV
Slew Rate : 0.5 V/us
Shutdown : No
Common Mode Rejection Ratio (Min) : 70 dB
Mounting Style : Through Hole
Maximum Operating Temperature : + 70 C
Input Bias Current (Max) : 500 nA
Package / Case : DIP-8


Features:

• Short circuit protection
• Excellent temperature stability
• Internal frequency compensation
• High Input voltage range
• Null of offset


Pinout

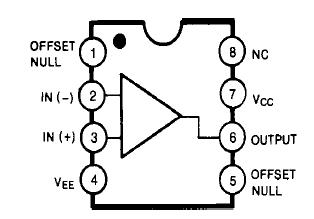

Connection Diagram


Specifications

Characteristic
SYMBOL
RATING
UNITS
Supply Voltage
VCC
±18
V
Differential Input Voltage
VI(DIFF
30
A
Input Voltage
VI
±15
mA
Output Short Circuit Duration
-
Indefinite

Power Dissipation
PD
500
W
Operating Temperature Range
KA741
KA741I
TOPR
-40 ~ +85
°C
0 ~ + 70
Storage Temperature Range
TSTG
-45 ~ +125
°C



Description

The KA741 series are general purpose operational amplifiers. KA741 is intended for a wide range of analog applications. The high gain and wide range of operating voltage provide superior performance in intergrator, summing amplifier, and general feedback applications.




Parameters:

Technical/Catalog InformationKA741
VendorFairchild Semiconductor
CategoryIntegrated Circuits (ICs)
PackagingTube
Amplifier TypeGeneral Purpose
Number of Circuits1 - Single
Package / Case8-DIP
Slew Rate0.5 V/s
Gain Bandwidth Product-
Current - Supply1.5mA
Current - Output / Channel25mA
Voltage - Supply, Single/Dual (±)-
Output Type-
-3db Bandwidth-
Current - Input Bias80nA
Operating Temperature0°C ~ 70°C
Voltage - Input Offset2000V
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names KA741
KA741
