KA7405D

Other Power Management

product image

KA7405D Picture
See larger image
SeekIC No. : 00535414 Detail

KA7405D: Other Power Management

KA7405D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
KA7405D
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Output Voltage Range :
Output Current :
Input Voltage Range :
Input Current :
Power Dissipation :
Operating Temperature Range :
Mounting Style :
Package / Case :
Packaging :


Features:

• Output current up to 1.5A (Each channel).
• 4-function modes (CW, CCW, stop and brake) re controlled by 2-logic circuits.
• Operating voltage range: VCC = 2.5 ~ 6.0V.
• Built-in spike killer diode.
• Low saturation voltage.


Application

• Camera zoom and film motors
• General DC motor


Pinout

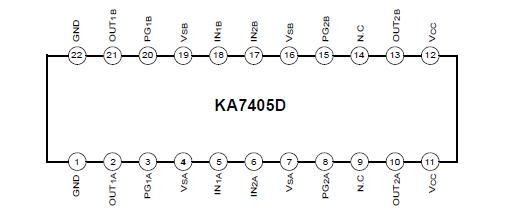

Connection Diagram


Specifications

Parameter Symbol Value Unit
Power supply voltage VCCMAX 6.0 V
Channel supply voltage VSMAX 6.0 V
Power dissipation PD 1000 mW
Operating temperature TOPR −25 to 75
Storage temperature TSTG −40 to 125
Output current IOMAX 1.5 A



Description

The KA7405D is a monolithic integrated circuit, and suitable or the zoom and reel motor driver for camera, tape eck, any other consumer and industrial applications.
