Part Number: KA8507B



MFG: SEC

Package Cooled: DIP

D/C: 93

Description: KA8507B is a automatic gain control system that is used for dynamic range compression and expansion. A...


Urgent Purchase

KA8507B General Description


KA8507B is a automatic gain control system that is used for dynamic range compression and expansion. According to the companding the signal, this can reduce the noise components. KA8507B includes compressor, expander, pre-amp, filter amp, limiter and mute/bypath logic.

KA8507B Maximum Ratings

Parameter
Symbol
Ratings
Unit
Input Voltage
VCC
10
A
Power Dissipation KA8507B
PD
1000
mW
KA8507BD
410
Operating Temperature
TOPR
- 20 to + 70
°C
Storage Temperature
TSTG
- 55 to + 150
°C

KA8507B Features

• Wide Supply Voltage ( 2.4 to 7V )
• Easy Gain Control
• Mute/Bypath Logic
• Data In/Out Pin

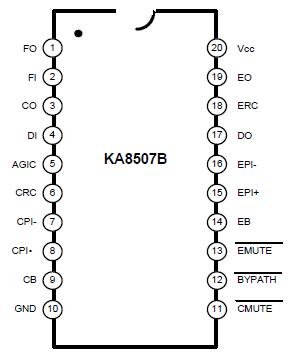

KA8507B Connection Diagram

KA8507B  Connection Diagram
