Product Details

Description



Features:

• Extended Data Out Mode operation
CAS-before-RAS refresh capability
RAS-only and Hidden refresh capability
• Self-refresh capability (L-ver only)
• Fast parallel test mode capability
• LVTTL(3.3V) compatible inputs and outputs
• Early Write or output enable controlled write
• JEDEC Standard pinout
• Available in Plastic SOJ and TSOP(II) packages
• +3.3V±0.3V power supply

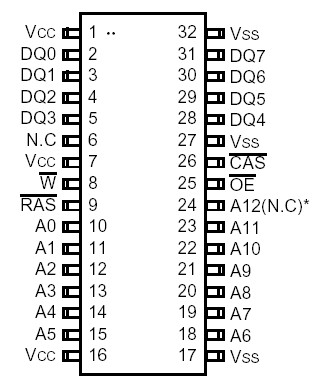

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
-0.5 to +6.5
V
Voltage on VCCSupply Relative to VSS
VCC
-0.5 to +4.6
V
Storage Temperature
TSTG
-55 ~ +150
°C
Power dissipation
PD
1
W
Short Circuit Output Current
IOS
50
mA



Description

This is a family of 8,388,608 x 8 bit Extended Data Out Mode CMOS DRAMs KM48V8004B. Extended Data Out Mode KM48V8004B offers high speed random access of memory cells within the same row. Refresh cycle(4K Ref. or 8K Ref.), access time (-45, -5 or -6), power consumption(Normal or Low power) are optional features of this family. All of this family have CAS-before-RAS refresh, RAS-only refresh and Hidden refresh capabilities. Furthermore, Self-refresh operation is available in L-version. This 8Mx8 EDO Mode DRAM family KM48V8004B is fabricated using Samsung ¢s advanced CMOS process to realize high band-width, low power consumption and high reliability.
