Part Number: KM68257C
Description: The KM68257C is a 262,144-bit high-speed Static Random Access Memory organized as 32,768 words by 8 bits. The KM6825...
- Table of contents:
KM68257C
-
Suppliers
DataSheet
General Description
KM68257C General Description
The KM68257C is a 262,144-bit high-speed Static Random Access Memory organized as 32,768 words by 8 bits. The KM68257C uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG's advanced CMOS process and designed for high-speed circuit technology. It is particularly well suited for use in high-density high-speed system applications. The KM68257C is packaged in a 300 mil 28-pin plastic DIP, SOJ or TSOP1 forward.
KM68257C Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Voltage on Any Pin Relative to VSS | VIN, VOUT | -0.5 to 7.0 | V |
| Voltage on VCC Supply Relative to VSS | VCC | -0.5 to 7.0 | V |
| Power Dissipation | PD | 1.0 | W |
| Storage Temperature | TSTG | -65 to 150 | |
| Operating Temperature | TA | 0 to 70 |
KM68257C Features
`Fast Access Time 12, 15, 20``(Max.)
`Low Power Dissipation
Standby (TTL) : 40``(Max.)
(CMOS) : 2``(Max.)
0.1``(Max.)- L-ver. only
Operating KM68257C/CL - 12 : 165``(Max.)
KM68257C/CL - 15 : 150``(Max.)
KM68257C/CL - 20 : 140``(Max.)
`Single 5.0V±10% Power Supply
`TTL Compatible Inputs and Outputs
`I/O Compatible with 3.3V Device
`Fully Static Operation
- No Clock or Refresh required
`Three State Outputs
`Low Data Retention Voltage : 2V(Min.)- L-ver. only
`Standard Pin Configuration
KM68257C/CLP : 28-DIP-300
KM68257C/CLJ : 28-SOJ-300
KM68257C/CLTG : 28-TSOP1-0813, 4F
`Low Power Dissipation
Standby (TTL) : 40``(Max.)
(CMOS) : 2``(Max.)
0.1``(Max.)- L-ver. only
Operating KM68257C/CL - 12 : 165``(Max.)
KM68257C/CL - 15 : 150``(Max.)
KM68257C/CL - 20 : 140``(Max.)
`Single 5.0V±10% Power Supply
`TTL Compatible Inputs and Outputs
`I/O Compatible with 3.3V Device
`Fully Static Operation
- No Clock or Refresh required
`Three State Outputs
`Low Data Retention Voltage : 2V(Min.)- L-ver. only
`Standard Pin Configuration
KM68257C/CLP : 28-DIP-300
KM68257C/CLJ : 28-SOJ-300
KM68257C/CLTG : 28-TSOP1-0813, 4F

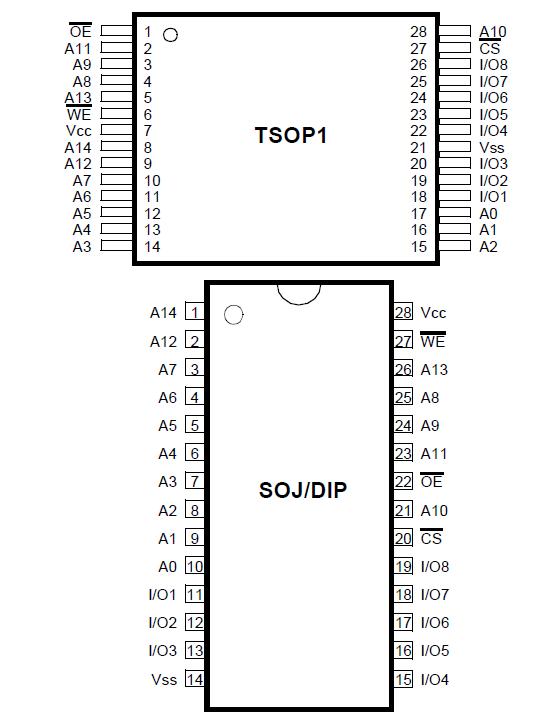

KM68257C Connection Diagram
KM68257C
