Part Number: KM684000C
Description: The KM684000C families are fabricated by SAMSUNG's advanced CMOS process technology. The families support various op...
- Table of contents:
KM684000C
-
Suppliers
DataSheet
General Description
KM684000C General Description
The KM684000C families are fabricated by SAMSUNG's advanced CMOS process technology. The families support various operating temperature ranges and various package types for user flexibility of system design. The family also support low data retention voltage for battery back-up operation with low data retention current.
KM684000C Maximum Ratings
| Item | Symbol | Ratings | Unit | Remark |
| Voltage on any pin relative to Vss | VIN,VOUT | -0.5 to 7.0 | V | - |
| Voltage on Vcc supply relative to Vss | VCC | -0.5 to 7.0 | V | - |
| Power Dissipation | PD | 1.0 | W | - |
| Storage temperature | TSTG | -65 to 150 | - | |
| Operating Temperature | TA | 0 to 70 | KM684000CL/L-L | |
| -40 to 85 | KM684000CLI/LI-L |
KM684000C Features
· Process Technology: TFT
· Organization: 512Kx8
· Power Supply Voltage: 4.5~5.5V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-DIP-600, 32-SOP-525,
32-TSOP2-400F/R
· Organization: 512Kx8
· Power Supply Voltage: 4.5~5.5V
· Low Data Retention Voltage: 2V(Min)
· Three state output and TTL Compatible
· Package Type: 32-DIP-600, 32-SOP-525,
32-TSOP2-400F/R

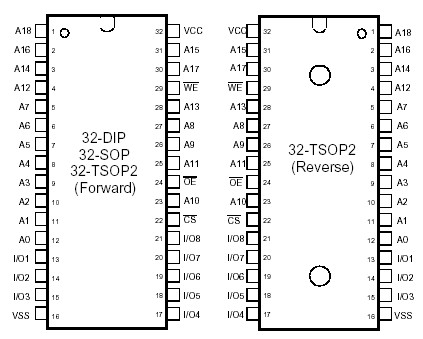

KM684000C Connection Diagram
KM684000CLG-5
PDF/DataSheet Download
- Datasheet: KM684000CLG-5
- File Size: 173764 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
