Part Number: KM68U1000B
Description: The KM68V1000B and KM68U1000B families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families ...
- Table of contents:
KM68U1000B
-
Suppliers
DataSheet
General Description
KM68U1000B General Description
The KM68V1000B and KM68U1000B families are fabricated by SAMSUNG¢s advanced CMOS process technology. The families support various operating temperature ranges and have various package types for user flexibility of system design. The families also support low data retention voltage for battery back-up operation with low data retention current.
KM68U1000B Maximum Ratings
| Item | Symbol | Ratings | Unit | Remark |
| Voltage on any pin relative to Vss | VIN,VOU | -0.5 to VCC+0.5 | V | - |
| Voltage on Vcc supply relative to Vss | VCC | -0.3 to 4.6 | V | - |
| Power Dissipation | PD | 0.7 | W | - |
| Storage temperature | TSTG | -65 to 150 | C | - |
| 0 to 70 | C | KM68V1000BL, KM68U1000BL | ||
| -25 to 85 | C | KM68V1000BLE, KM68U1000BLE | ||
| Operating Temperature | TA | -40 to 85 | C | KM68V1000BLI, KM68U1000BLI |
| Soldering temperature and time | TSOLDER | 260 C, 10sec (Lead Only) | - | - |
KM68U1000B Features
· Process Technology : Poly Load
· Organization : 128Kx8
· Power Supply Voltage :
KM68V1000B family : 3.0~3.6V
KM68U1000B family : 2.7~3.3V
· Low Data Retention Voltage : 2V(Min)
· Three state output and TTL Compatible
· Package Type : 32-SOP, 32-TSOP1-0820F/R
· Organization : 128Kx8
· Power Supply Voltage :
KM68V1000B family : 3.0~3.6V
KM68U1000B family : 2.7~3.3V
· Low Data Retention Voltage : 2V(Min)
· Three state output and TTL Compatible
· Package Type : 32-SOP, 32-TSOP1-0820F/R

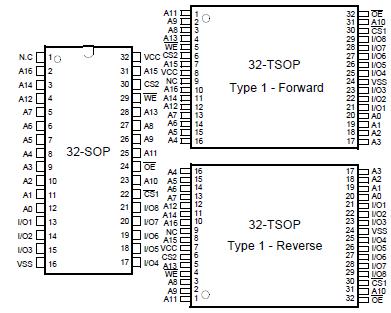

KM68U1000B Connection Diagram
KM68U1000B
PDF/DataSheet Download
- Datasheet: KM68U1000B
- File Size: 188377 KB
- Manufacturer: SAMSUNG [Samsung semiconductor]
- Click here to Download
