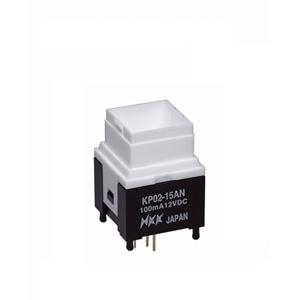

See larger image

SeekIC No. : 002616809 Detail

KP0215ANBKG03CF: Pushbutton Switches Switches

KP0215ANBKG03CF Data Sheet

US $ 5.02~6.41 / Piece | Get Latest Price

Part Number:: KP0215ANBKG03CF
Mfg:: NKK Switches
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$6.41
$5.64
$5.51
$5.02

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

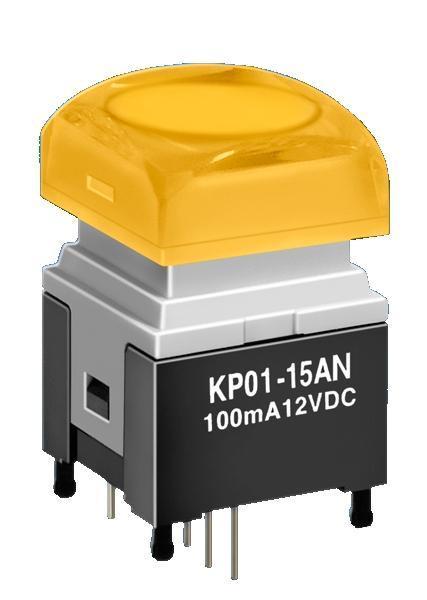

KP0215ACAKG036CF-1FJB evaluate
US $7.12 - 8.42 / Piece

Pushbutton Switches Tactile 9.2mm Red/Green 12mm cap
KP0215ACBKG03CF-2SJB evaluate
US $3.5 - 4.48 / Piece

Pushbutton Switches Series KP Audio, Video
KP0215ACAKG03RGB-1TJB evaluate
US $14.18 - 16.78 / Piece

Pushbutton Switches Tactile 9.2mm RGB 12mm cap

Product Details

Quick Details

Contact Form :	SPST	Switch Function :	OFF - (ON)
Current Rating :	100 mA	Voltage Rating DC :	12 V
Mounting Style :	Through Hole	Illumination :	Illuminated
Illumination Color :	Super Bright Red, Green	Termination Style :	Straight PC
Contact Plating :	Gold	Actuator :	Plunger

Description

Voltage Rating AC :
Power Rating :
IP Rating :
Cap Color :
Packaging :
Flammability Rating :
Contact Form : SPST
Switch Function : OFF - (ON)
Actuator : Plunger
Contact Plating : Gold
Current Rating : 100 mA
Mounting Style : Through Hole
Voltage Rating DC : 12 V
Illumination : Illuminated
Termination Style : Straight PC
Illumination Color : Super Bright Red, Green

Parameters:

Technical/Catalog Information	KP0215ANBKG03CF
Vendor	NKK Switches of America Inc
Category	Switches
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.1A @ 12VDC
Illumination Type, Color	LED, Red/ Green
Illumination Voltage (Nominal)	2.1, 3.5 VDC
Mounting Type	Through Hole
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	KP0215ANBKG03CF KP0215ANBKG03CF
