Purchase KS2508, In-stock KS2508 From SeekIC.
MFG:SAMAUNG D/C:04+
Part Number: KS2508
MFG: SAMAUNG
D/C: 04+
Description: The KS2508 is used to display some characters or symbols on a screen of monitor. Basically, the operat...
- Table of contents:
KS2508
-
Suppliers
DataSheet
General Description
KS2508 General Description
The KS2508 is used to display some characters or symbols on a screen of monitor. Basically, the operation is to control the internal memory on chip and generate the R,G,B signals for some characters or symbols. The R,G,B signals are synchronized with the horizontal sync. Then the R,G,B signals are mixed with the main video signal in the Video Amp IC.
The font data for characters or symbols are stored in the internal ROM. This stored data are accessed and controlled by the control data from a micro controller. The control data are transmitted through the I2C bus. All timing control signals including the system clock are synchronized with the horizontal sync.
Therefore there is a PLL circuitry on chip.
KS2508 Maximum Ratings
|
Parameters |
Symbol |
Value |
Unit | ||
|
Min. |
Typ. |
Max. | |||
| Maximum Supply Voltage |
VDD |
- |
- |
7.0 |
V |
| Input Voltage |
VI |
- |
- |
7.0 |
V |
| Operating Temperature Range |
TOPR |
-20 |
- |
70 |
|
| Storage Temperature Range |
TSTG |
-40 |
125 |
||
| Power Dissipation |
PD |
- |
- |
1200 |
mW |
NOTE: PKG Thermal Resistance : 64.2/W
KS2508 Features
• 256 ROM fonts (Each font consists of 12 x 18 dots.)
• Full Screen Memory Architecture
• Wide range PLL available (15 kHz ~ 120 kHz)
• Programmable vertical height of character
• Programmable vertical and horizontal positioning
• Character color selection up to 16 different colors
• Programmable background color (Up to 16 colors)
• Character blinking, bordering and shadowing
• Color blinking
• Character scrolling
• Fade-in and fade-out
• Box drawing
• Character sizing up to four times
• 96 MHz pixel frequency from on-chip PLL
• IIC Protocol Data Transmission (Slave Address : BAH)
• Full Screen Memory Architecture
• Wide range PLL available (15 kHz ~ 120 kHz)
• Programmable vertical height of character
• Programmable vertical and horizontal positioning
• Character color selection up to 16 different colors
• Programmable background color (Up to 16 colors)
• Character blinking, bordering and shadowing
• Color blinking
• Character scrolling
• Fade-in and fade-out
• Box drawing
• Character sizing up to four times
• 96 MHz pixel frequency from on-chip PLL
• IIC Protocol Data Transmission (Slave Address : BAH)

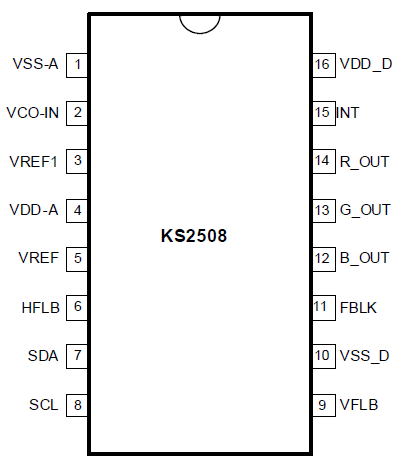

KS2508 Connection Diagram
KS2508
