Part Number: KS57P01504
Description: The KS57P01504 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57...
- Table of contents:
KS57P01504
-
Suppliers
DataSheet
General Description
KS57P01504 General Description
The KS57P01504 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57C01502/C01504 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by serial data format.
The KS57P01504 is fully compatible with the KS57C01502/C0504, both in function and in pin configuration.
Because of its simple programming requirements, the KS57P01504 is ideal for use as an evaluation chip for the KS57C01502/C01504.
KS57P01504 Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Rating |
Units |
| Supply Voltage |
VDD |
- |
0.3 to + 6.5 |
V |
| Input Voltage |
VI |
All I/O ports |
0.3 to VDD + 0.3 |
V |
| Output Voltage |
VO |
- |
0.3 to VDD + 0.3 |
V |
| Output Current High |
IOH |
One I/O port active |
-5 |
mA |
|
All I/O ports active |
-15 | |||
| Output Current Low |
IOL |
Ports 0, 3, and 6 |
5 |
mA |
|
Ports 4 and 5 |
30 | |||
|
All ports, total |
100 | |||
| Operating Temperature |
TA |
- |
40 to + 85 |
|
| Storage Temperature |
Tstg |
- |
65 to + 150 |
KS57P01504 Features
Memory
` 512 ´ 4-bit data memory (RAM)
` 2048 ´ 8-bit program memory
(ROM):KS57C01502
4096 ´ 8-bit program memory
(ROM):KS57C01504
24 I/O Pins
` I/O: 18 pins, including 8 high current pins
` Input only: 6 pins
Comparator
` 4-channel mode:
Internal reference (4-bit resolution)
16-step variable reference voltage
` 3-channel mode:
External reference
150 mV resolution (worst case)
8-bit Basic Timer
` Programmable interval timer
` Watch-dog timer
8-bit Timer/Counter 0
` Programmable interval timer
` External event counter function
Timer/counter clock output to TCLO0 pin Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 4.19
MHz
` 4 frequency outputs to BUZ pin
8-bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive-only mode
` LSB-first or MSB-first transmission selectable
` Internal or external clock source
Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format
Interrupts
` Two external interrupt vectors
` Three internal interrupt vectors
` Two quasi-interrupts
Memory-Mapped I/O Structure
` Data memory bank 15
Two Power-Down Modes
` Idle mode: Only CPU clock stops
` Stop mode: System clock stops
OSCILLATION SOURCES
` Crystal, Ceramic for system clock
` Crystal/ceramic: 0.4 - 6.0 MHz
` CPU clock divider circuit (by 4. 8, or 64)
Instruction Execution Times
` 0.95, 1.91, 15.3 s at 4.19 MHz
` 0.67, 1.33, 10.7 s at 6.0 MHz
Operating Temperature
` 40 °C to 85 °C
Operating Voltage Range
` 1.8 V to 5.5 V
Package Type
` 30 SDIP, 32 SOP
` 512 ´ 4-bit data memory (RAM)
` 2048 ´ 8-bit program memory
(ROM):KS57C01502
4096 ´ 8-bit program memory
(ROM):KS57C01504
24 I/O Pins
` I/O: 18 pins, including 8 high current pins
` Input only: 6 pins
Comparator
` 4-channel mode:
Internal reference (4-bit resolution)
16-step variable reference voltage
` 3-channel mode:
External reference
150 mV resolution (worst case)
8-bit Basic Timer
` Programmable interval timer
` Watch-dog timer
8-bit Timer/Counter 0
` Programmable interval timer
` External event counter function
Timer/counter clock output to TCLO0 pin Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 4.19
MHz
` 4 frequency outputs to BUZ pin
8-bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive-only mode
` LSB-first or MSB-first transmission selectable
` Internal or external clock source
Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format
Interrupts
` Two external interrupt vectors
` Three internal interrupt vectors
` Two quasi-interrupts
Memory-Mapped I/O Structure
` Data memory bank 15
Two Power-Down Modes
` Idle mode: Only CPU clock stops
` Stop mode: System clock stops
OSCILLATION SOURCES
` Crystal, Ceramic for system clock
` Crystal/ceramic: 0.4 - 6.0 MHz
` CPU clock divider circuit (by 4. 8, or 64)
Instruction Execution Times
` 0.95, 1.91, 15.3 s at 4.19 MHz
` 0.67, 1.33, 10.7 s at 6.0 MHz
Operating Temperature
` 40 °C to 85 °C
Operating Voltage Range
` 1.8 V to 5.5 V
Package Type
` 30 SDIP, 32 SOP

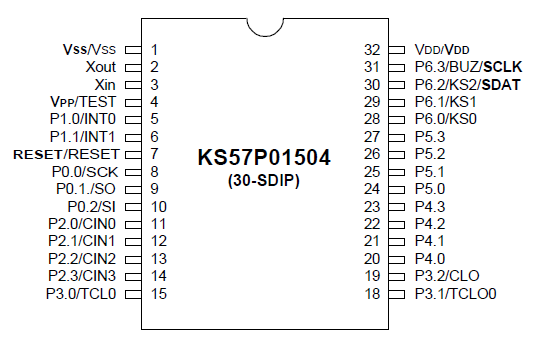

KS57P01504 Connection Diagram
