Product Details

Description



Features:

Memory
  • 256 *4-bit RAM (excluding LCD display RAM)
  • 16,384 *8-bit ROM
8 I/O Pins
  • I/O: 8 pins
LCD Controller/Driver
  • 44 segments and 16 common terminals (8, 12 and 16 common selectable)
  • Internal resistor circuit for LCD bias
  • Voltage doubler
  • All dot can be switched on/off
8-bit Basic Timer
  • 4 interval timer functions
  • Watch-dog timer
8-bit Timer/Counter
  • Programmable 8-bit timer
  • Arbitrary clock output (TCLO0)
  • Inverted clock output (TCLO0)
Watch Timer
  • Time interval generation: 0.5 s, 3.9 ms
at 32768 Hz
  • Four frequency outputs to BUZ pin and BUZ pin
  • Clock source generation for LCD
Interrupts
  • Two internal vectored interrupts
  • Four external vectored interrupts
  • Two quasi-interrupts
Memory-Mapped I/O Structure
   • Data memory bank 15
Power-Down Modes
  • Idle mode (only CPU clock stops)
  • Stop mode (main system oscillation stops)
  • Sub system clock stop mode
Oscillation Sources
  • Crystal, ceramic, or RC for main system clock
  • Crystal oscillator for subsystem clock
  • Main system clock frequency: 4.19 MHz (typical)
  • Subsystem clock frequency: 32.768 kHz
  • CPU clock divider circuit (by 4, 8, or 64)
Instruction Execution Times
  • 0.95, 1.91, 15.3 s at 4.19 MHz (main)
  • 122 s at 32.768 kHz (subsystem)
Operating Temperature
  •  40 °C to 85 °C
Operating Voltage Range
  • 2.2 V to 3.4 V (0.4 MHz to 4.19 MHz)
Package Type
  • 80-pin QFP or pellet

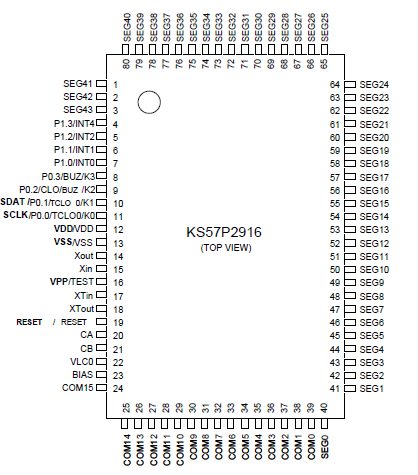

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Units
Supply Voltage
VDD
-
0.3 to + 6.5
V
Input Voltage
VI
All I/O ports
0.3 to VDD + 0.3
V
Output Voltage
VO
-
0.3 to VDD + 0.3
V
Output Current High
IOH
One I/O port active
-15
mA
All I/O ports active
-30
Output Current Low
IOL
One I/O pin active
+ 30 (Peak value)
mA
+ 15(note)
Total for pins 0, 1
+ 100 (Peak value)
+ 60(note)
Operating Temperature
TA
-
40 to + 85
Storage Temperature
Tstg
-
65 to + 150

NOTE: The values for Output Current Low ( IOL ) are calculated as Peak Value *Duty .


Description

The KS57P2916 single-chip CMOS microcontroller is the OTP (One Time Programmable) version of the KS57C2916 microcontroller. It has an on-chip OTP ROM instead of masked ROM. The EPROM is accessed by serial data format.

The KS57P2916 is fully compatible with the KS57C2916, both in function and in pin configuration. Because of its simple programming requirements, the KS57P2916 is ideal for use as an evaluation chip for the KS57C2916.
